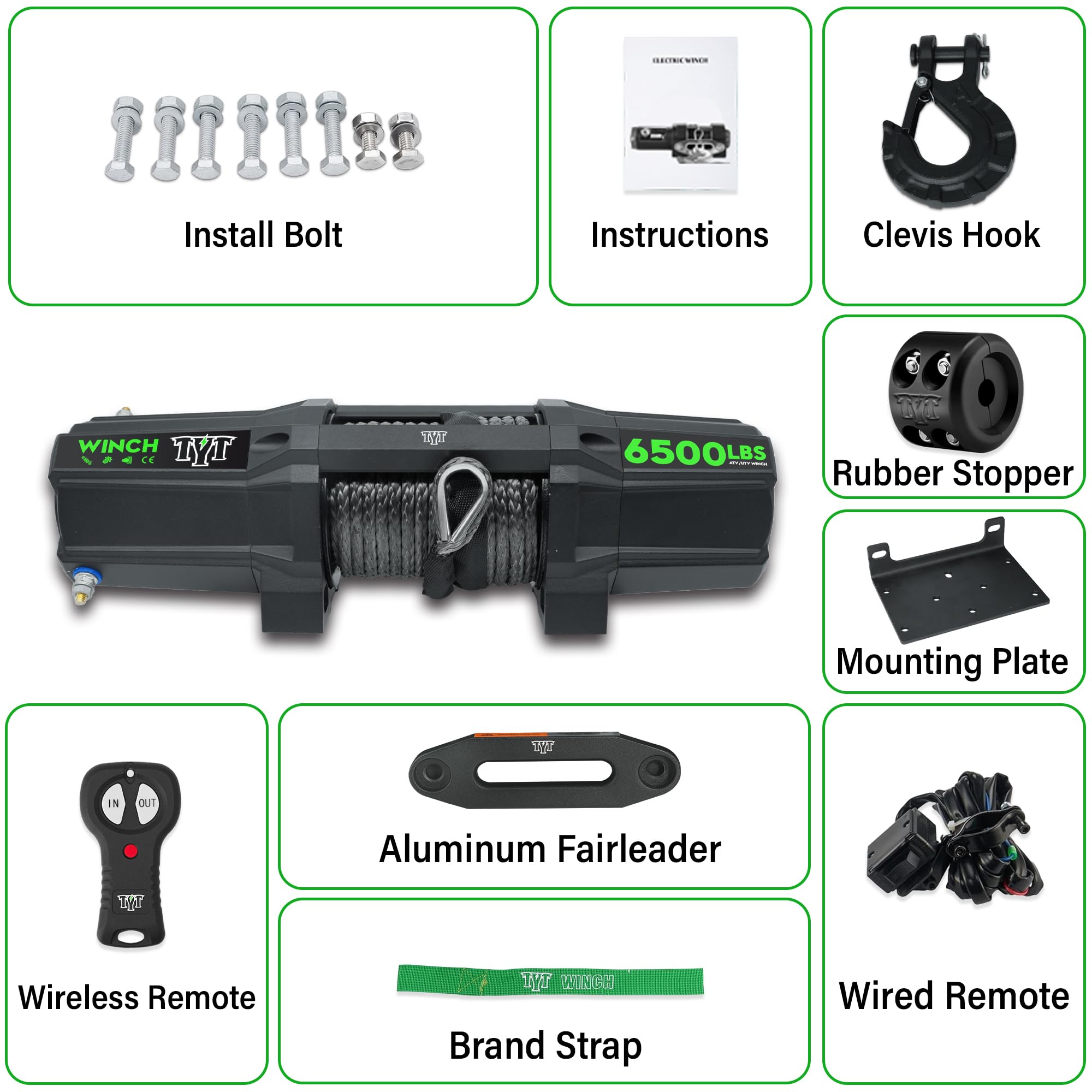

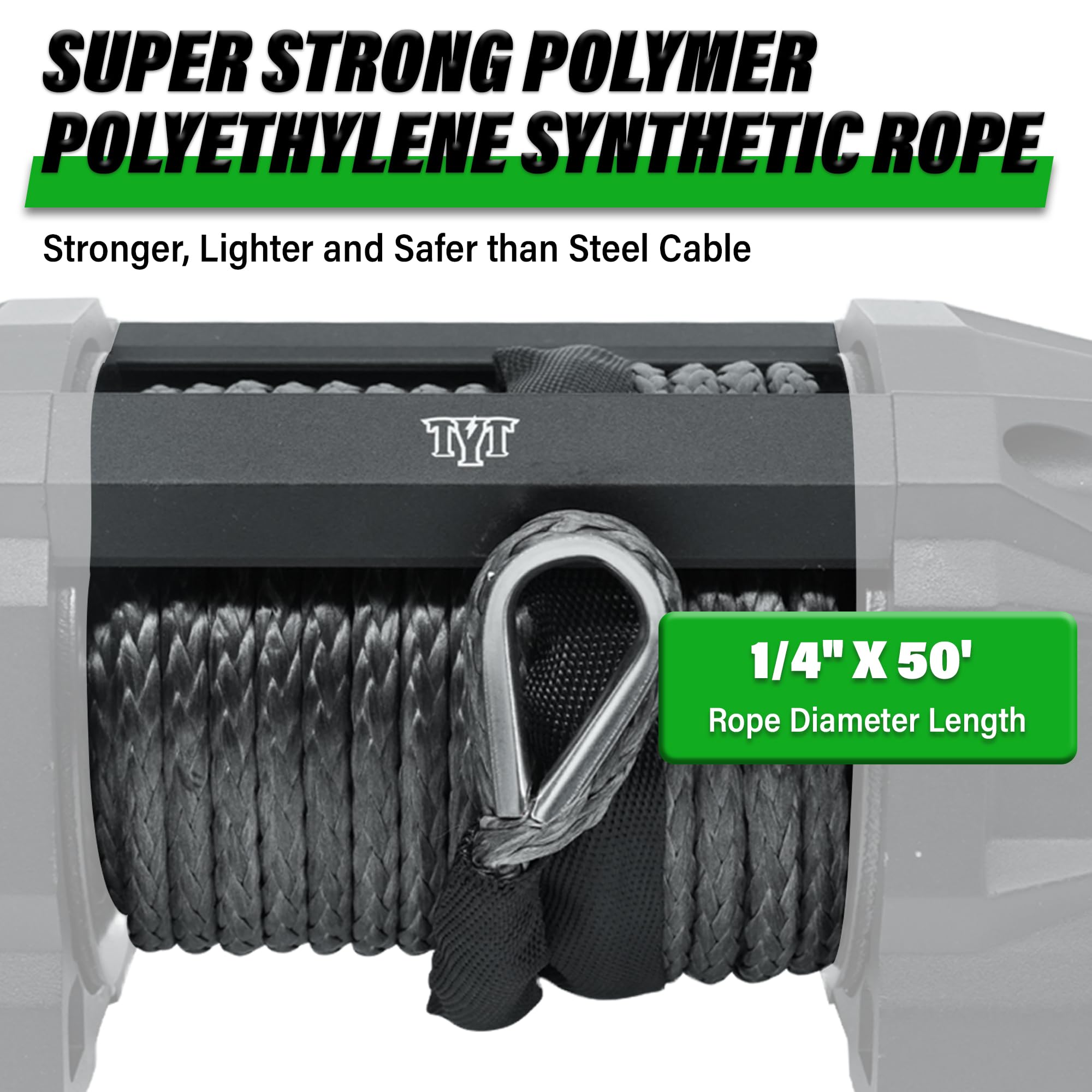

TYT 6500 lb UTV Winch Kit,12 Volt DC Electric Trailer Winch with Wireless Remote and Wired Switch,1/4″ x 50FT Synthetic Rope Winch with Rubber Stopper and Mounting Plate

Brand: TYT

Features:

n

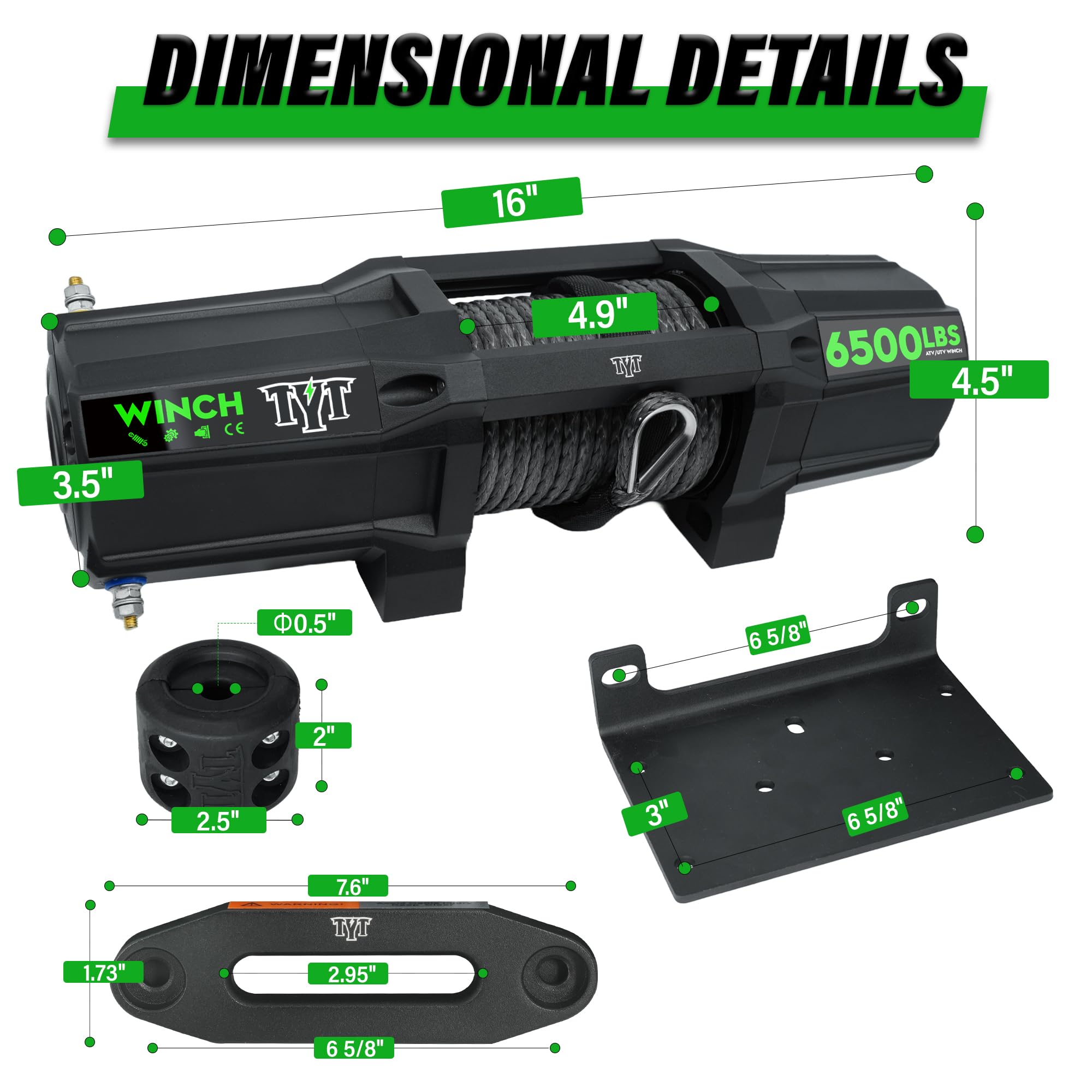

• 【Easy to install】6500lb UTV winch body size: 16”*4.5”*3.5”; Fairlead Mounting Pattern: 6 5/8 (169mm); Mounting Plate 4 Hole: 3″x 6 5/8″ (76mm x 169mm). Standard body size and installation size allow the TYT electric winch to adapt to most mounting brackets. Universally fits YXZ1000R, Maverick X3, Maverick Trail, Commander, Pioneer series, Mule series, Teryx KRX 1000, Gator series, Wildcat series and other models of UTV.

n

• 【High quality motor】The newly upgraded 2.7HP pure copper permanent magnet motor has excellent high temperature resistance and strong power, and can provide the rope with a pulling force of up to 6500lb. Minimum cold start current is 10A. This motor not only improves work efficiency, but also brings better controllability, allowing you to operate with ease in various applications.

n

• 【Precision Gears】UTV winch with three-stage planetary gear system，the transmission ratio is 192:1, which not only provides greater torque for the winch, but also saves the size of the gearbox, while significantly improving working accuracy and ensuring the smooth operation of the electric winch during work.

n

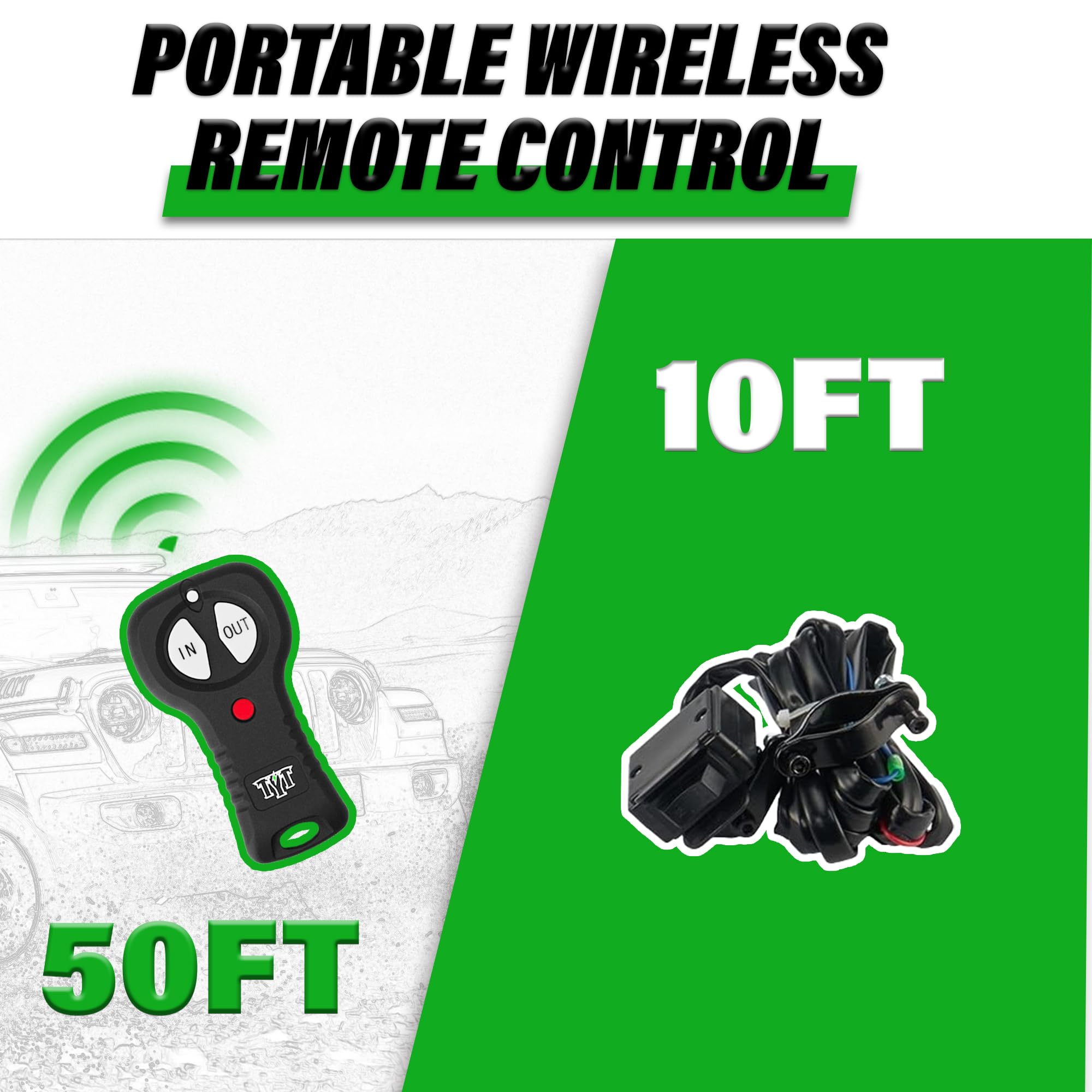

• 【Efficient Control】The UTV winch kits includes a 50-foot wireless remote control and a 10-foot wired controller, and the winch’s receiver responds quickly, ensuring that the winch responds quickly when you operate anywhere within a 50-foot radius.

n

Binding: Automotive

model number: 6500 lb

Part Number: PP3PL170006

Package Dimensions: 20.0 x 12.1 x 7.2 inches
