Red Lion 97101001 RL-SPRK100 Sprinkler Pump with Thermoplastic Impeller, 1 HP, 63 GPM, 115/230 Volt, Red

Brand: Red Lion

Color: Red

Features:

n

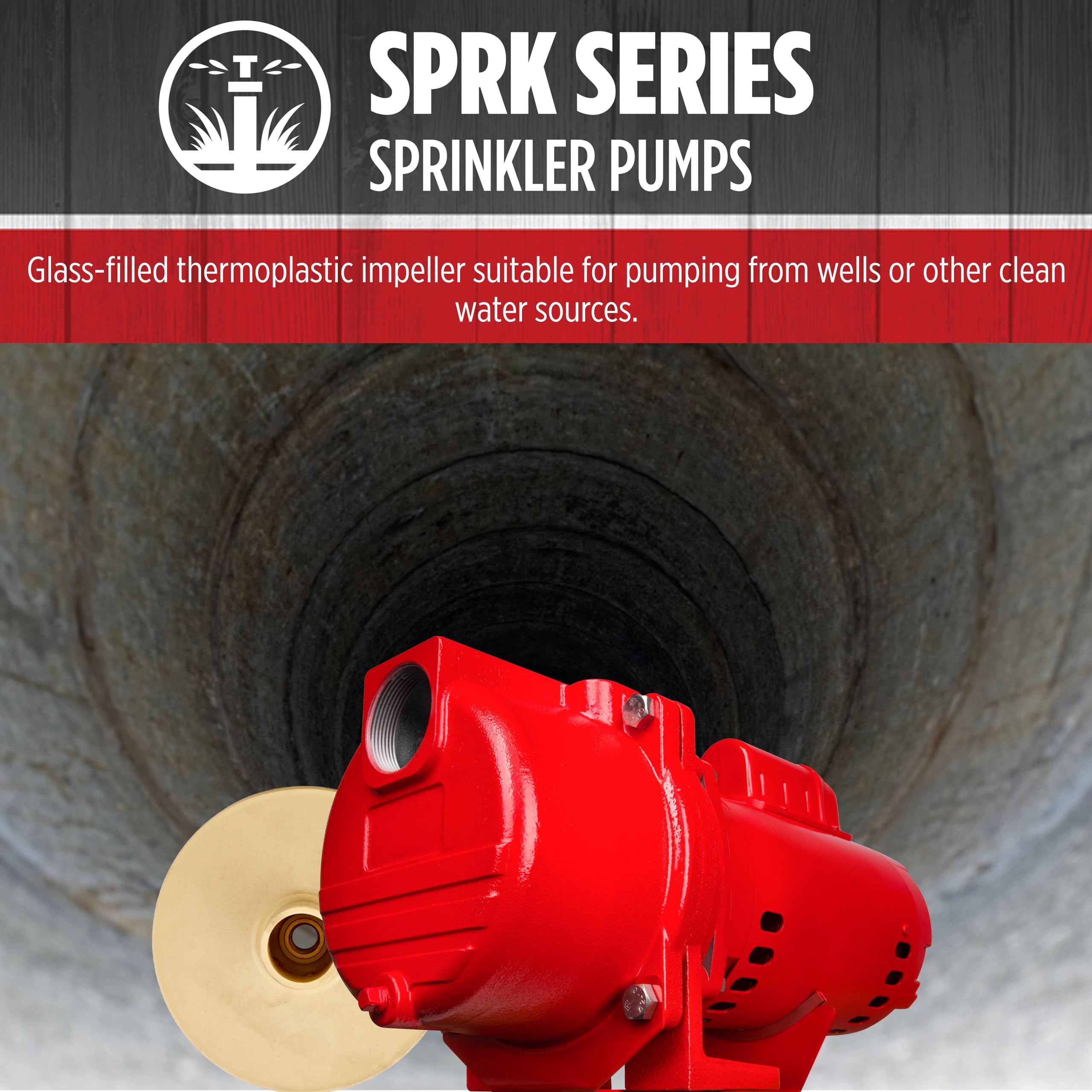

• BUILT TO LAST: Rugged cast iron pump housing and glass-filled thermoplastic impeller for well water and lake water

n

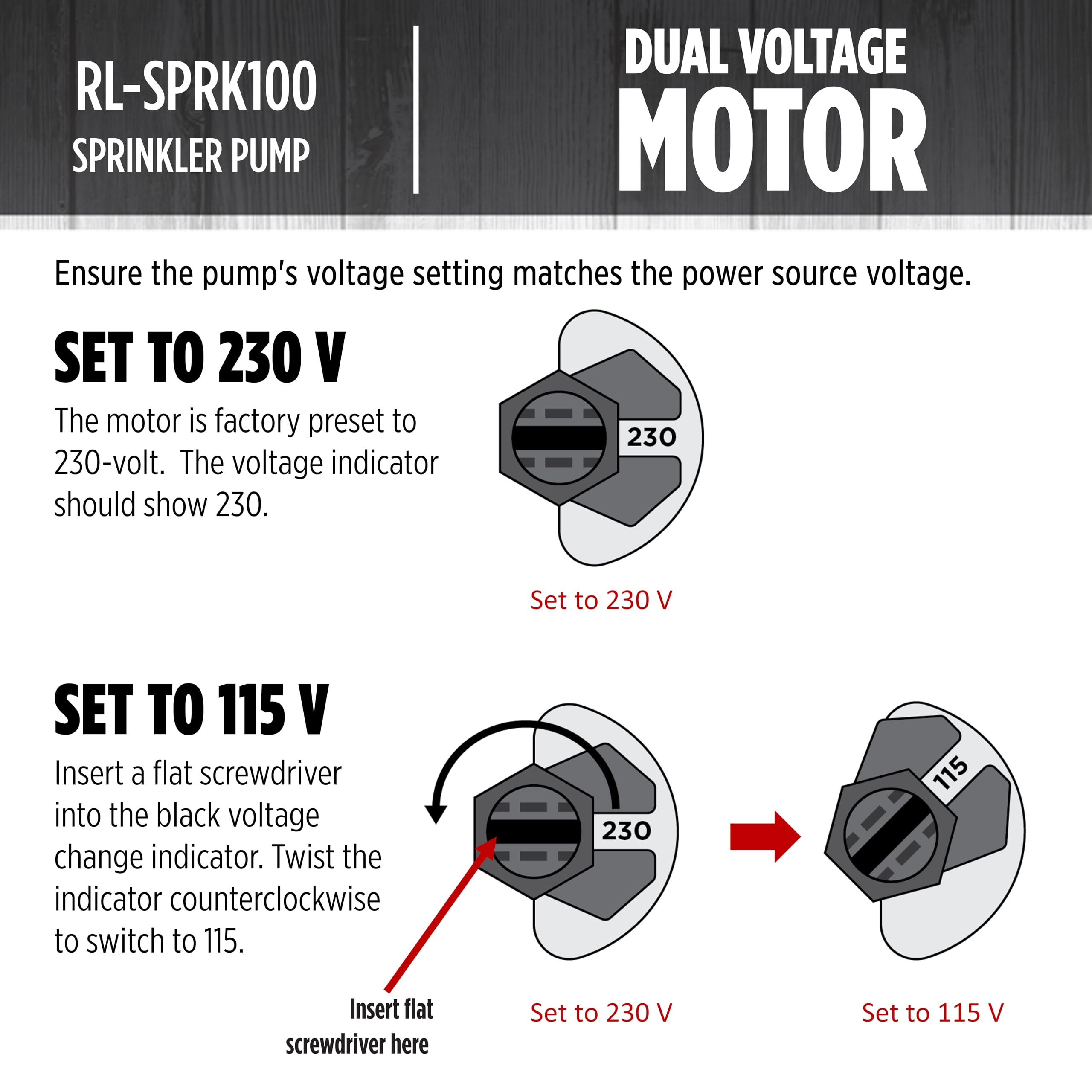

• DUAL VOLTAGE MOTOR: 115/230 Volts; pump is factory set at 230 Volts but can be easily switched to 115 Volts; always match the pump’s voltage to the source voltage

n

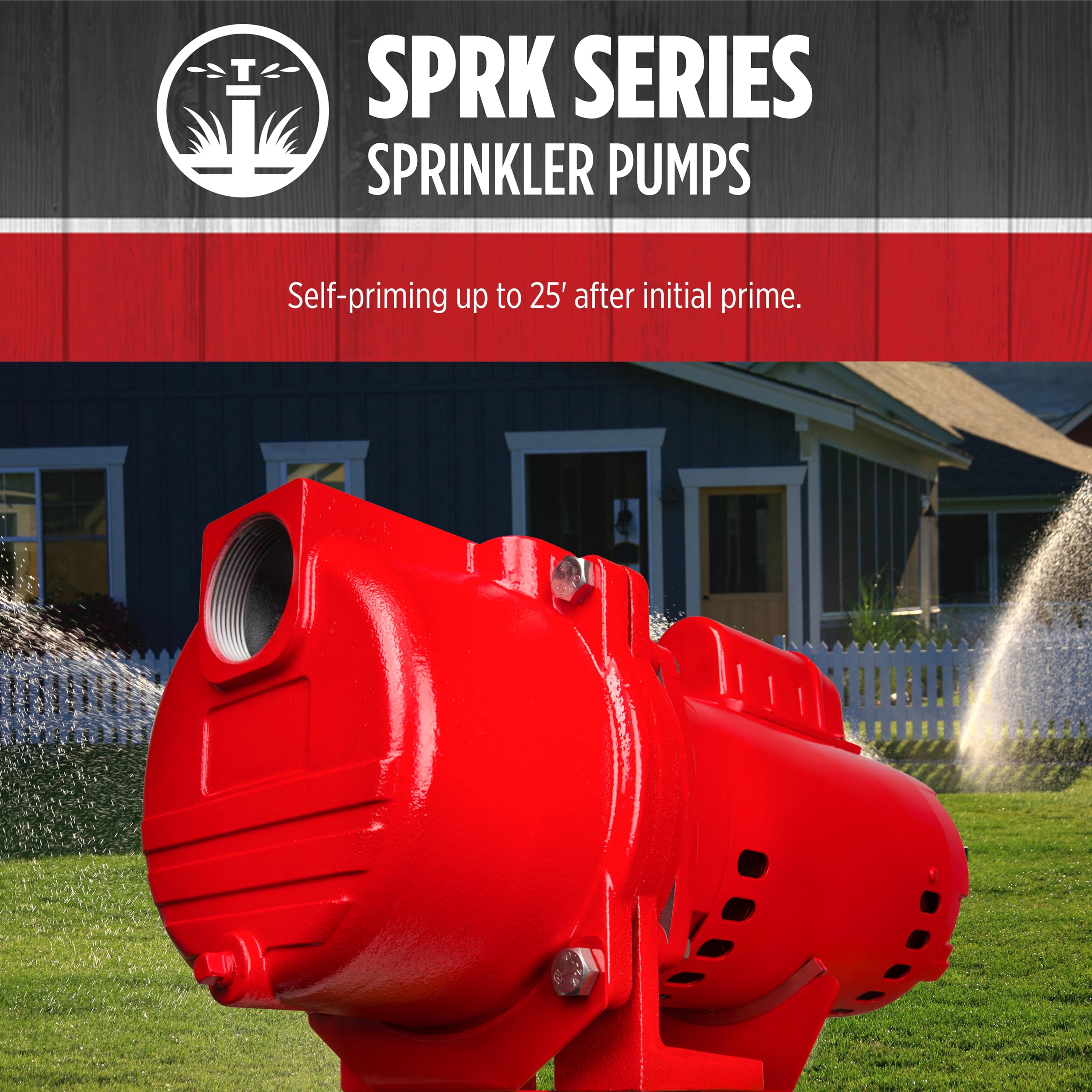

• ONE-TIME PRIMING: No additional priming is required after initial fill; follow the priming instructions in the owner’s manual

n

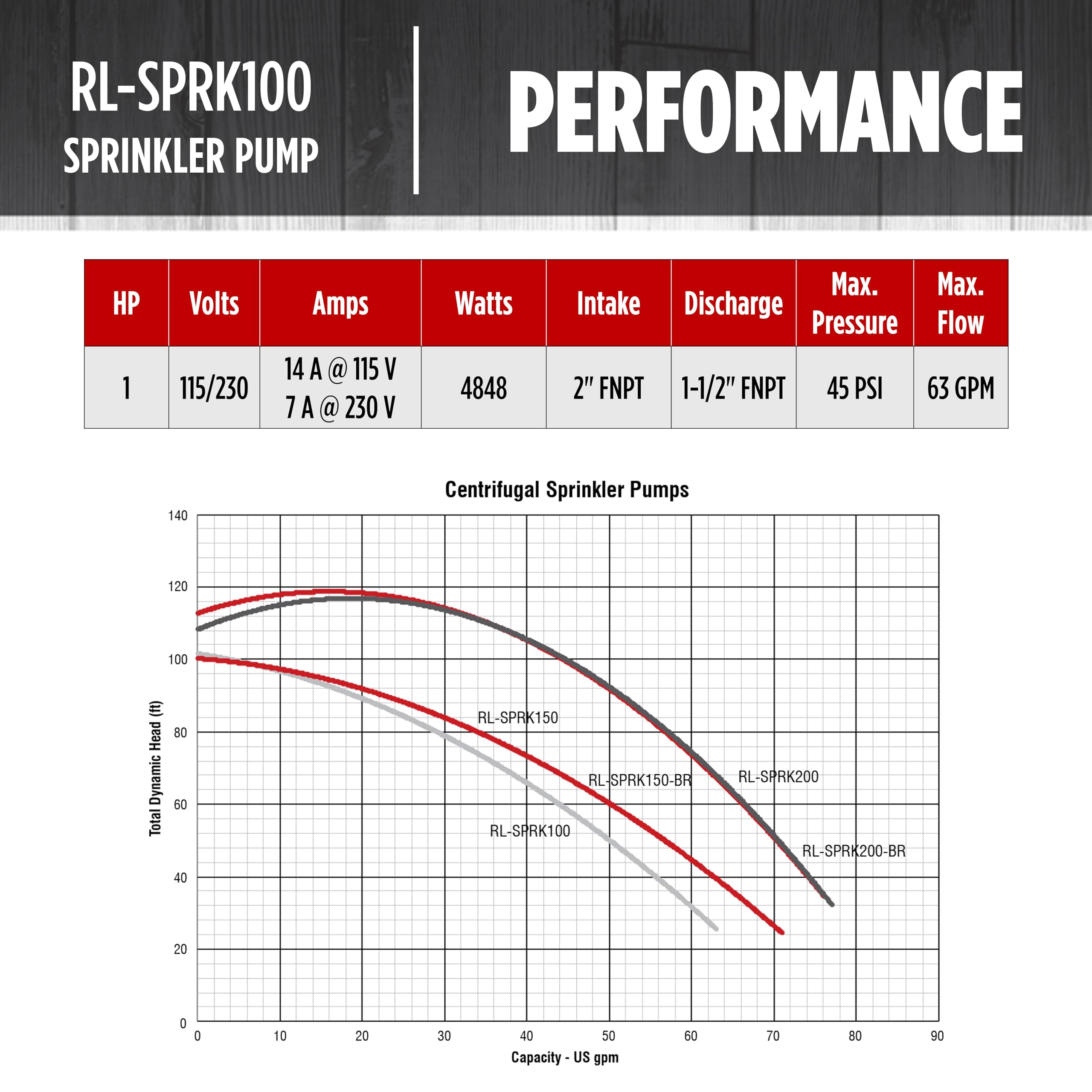

• UP TO 63 GPM at 10 PSI: 38 GPM at 30 PSI – can handle up to 12 sprinkler heads with 1/2-inch fittings or 6 sprinkler heads with 3/4-inch fittings in each zone

n

• SPECIFICATIONS: 1.0 HP, 115/230 Volts, 2-inch Female NPT threaded intake; 1.5-inch Female NPT threaded discharge, Max pressure 45 PSI

n

Binding: Tools & Home Improvement

model number: 97101001

Part Number: 97101001

Details: Product Description
n
nThe Red Lion RL-SPRK100 115/230 Volt, 1 HP sprinkler irrigation pump is idea for both residential and commercial lawn and turn sprinkling systems. This pump features a rugged cast iron casing, high efficiency thermoplastic impeller and diffuser and is to easy to prime to 25-ft – no additional priming is required after the initial fill. This pump comes factory set for 230 Volts but can be easily switched to 115 Volts. Instructions are found in the manual. Pump voltage must be set to match source voltage or it will not perform to the specifications.
n
nFrom the Manufacturer
n
nThis self priming sprinkler pump is ideal for both residential and commercial lawn and turf sprinkling systems. It features a rugged cast Iron casing and cast-in pump base with high efficiency thermoplastic impeller and diffuser.

EAN: 0010121124868

Package Dimensions: 20.2 x 13.0 x 11.7 inches
