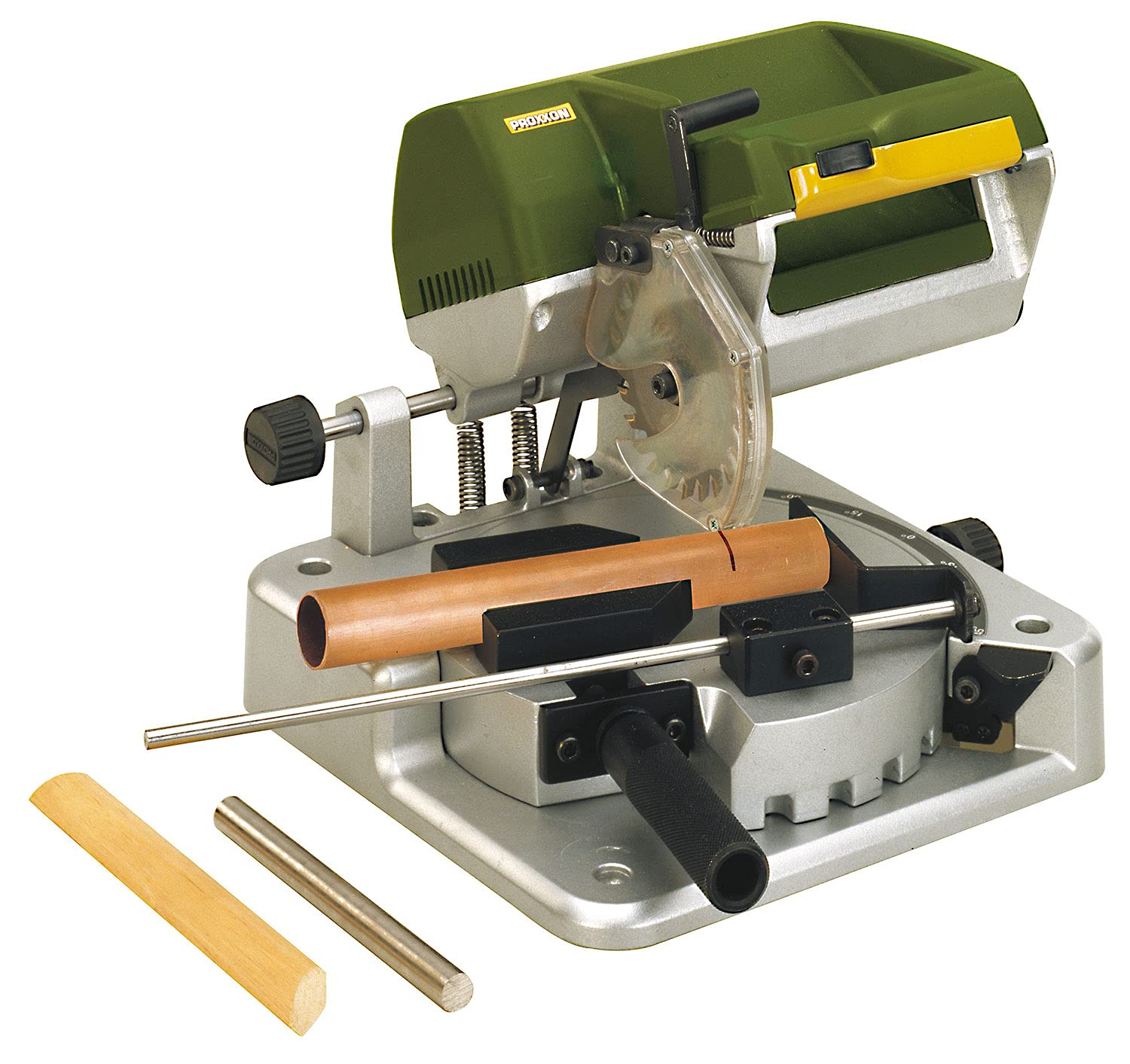

PROXXON Chop and Miter Saw KGS 80, 37160 , Green

Brand: Proxxon

Color: Green

Features:

• For clean and safe chop and miter cuts in non-ferrous metals, plastics and wood
• Ideal for miter cuts, instead of swivelling the saw head, the table with clamped down work piece is turned
• Continually adjustable round table made of pressure-cast aluminum swivels 45 degrees in both directions with positive stops at 15 degrees intervals

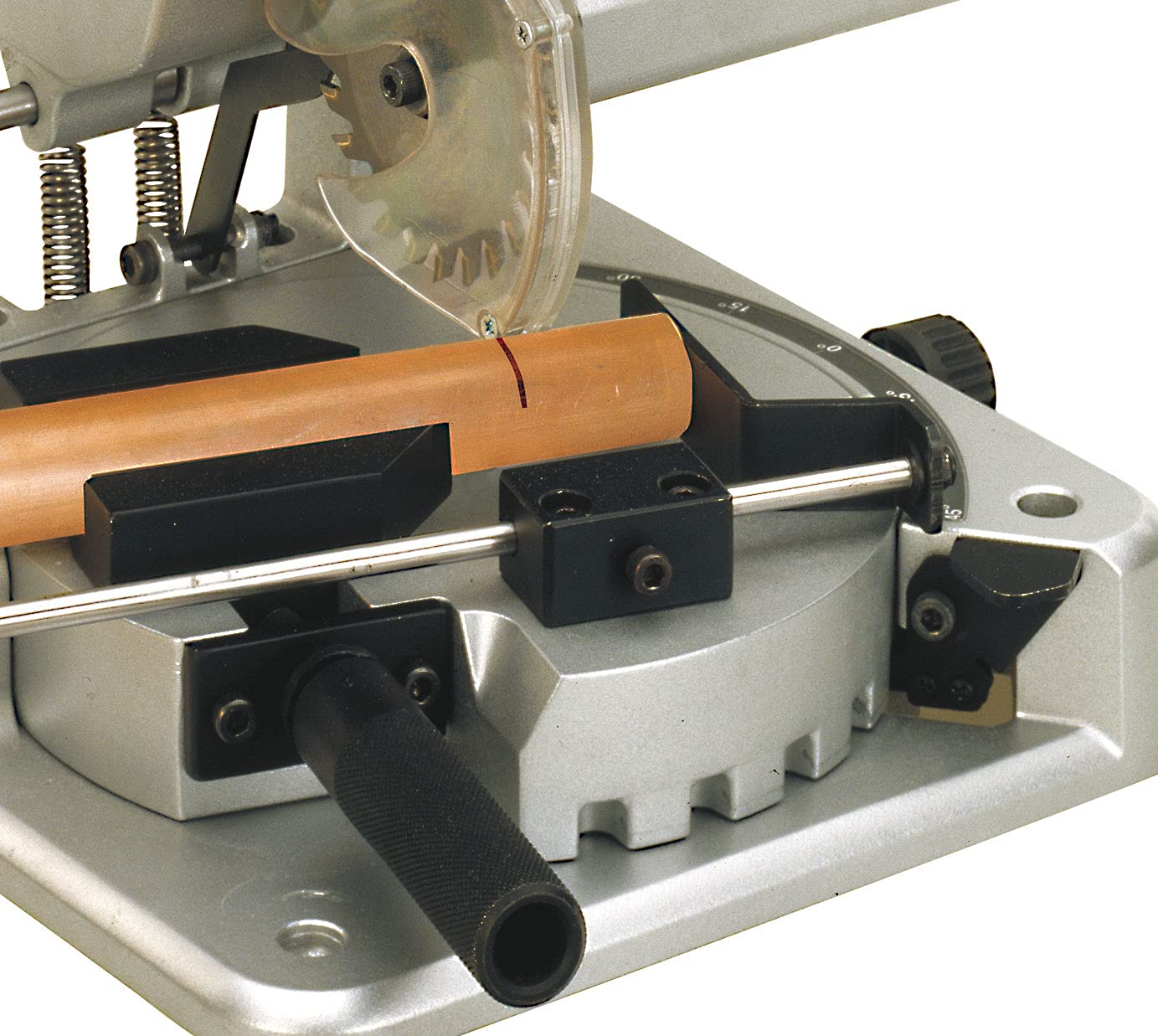

• Integrated tightening mechanism with self-centering clamps, V-groove for round pieces, front side groove for clamping thin work pieces
• Scope of delivery: 1x PROXXON Chop and Miter Saw KGS 80 including carbide tipped saw blade. Part number: 37160

Package Dimensions: 244x396x6123

Details: Product Description

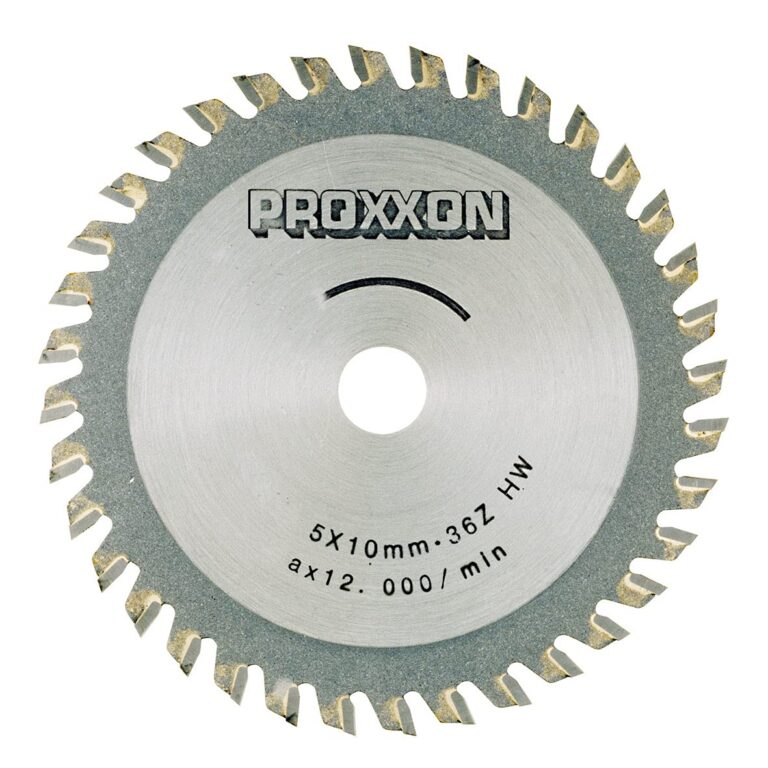

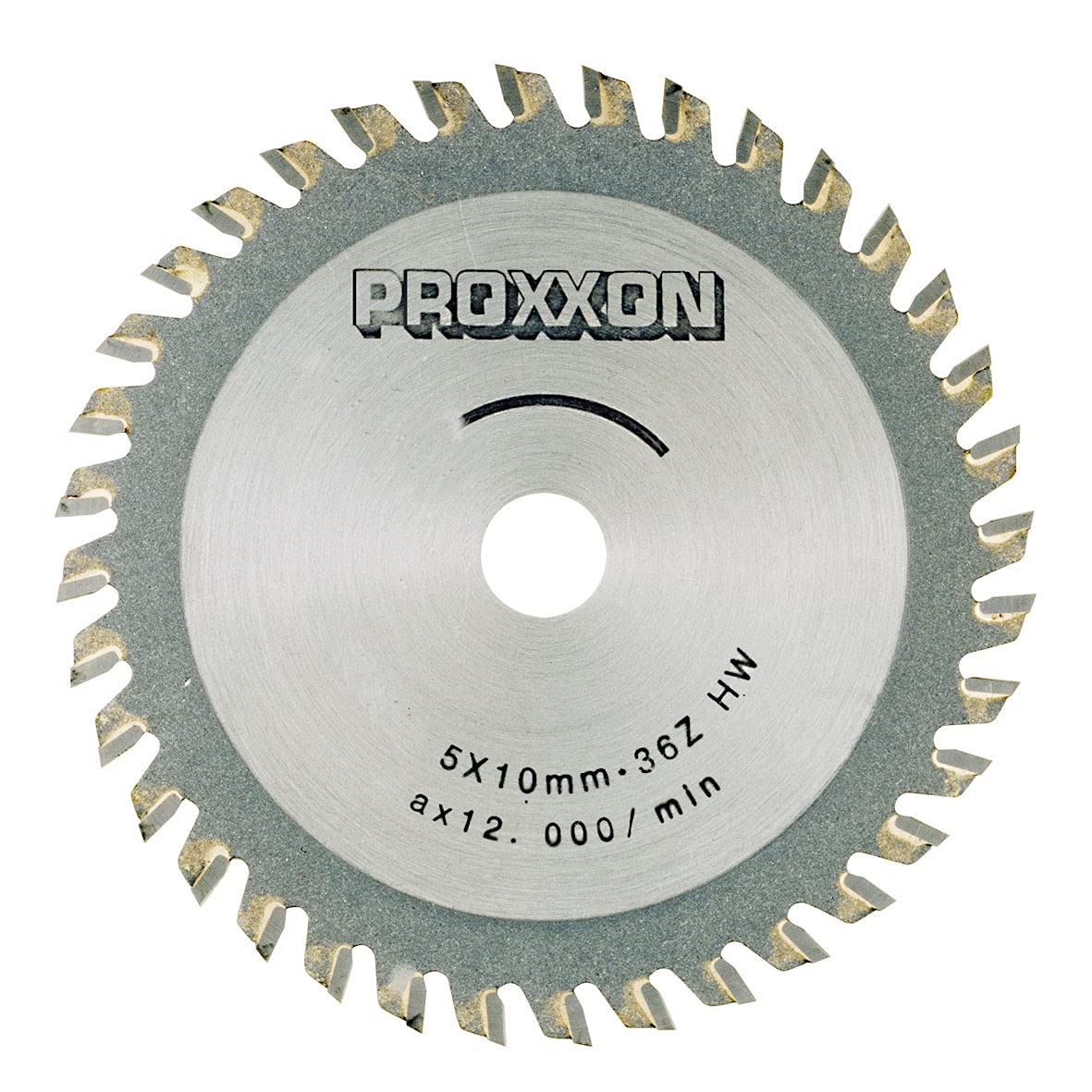

By using the fence and counter-rotating the table 2x 45 degrees, one can get the opposite angles for two equally long framing pieces by simply reversing them. Powerful, very quiet DC motor. Power transfer via belt drive. Carbide tipped saw blade 80 x 1.6 x 10mm (3 1/8″ x 1/16″ x 3/8″), 36 teeth. Base with round table of pressure-cast aluminum and CNC-machined guides and fittings. Other technical data: Volts 110 – 120V AC, 60Hz. Max. Power 1/4hp (200W). Speed 5,400rpm. Table area 9″ x 9″ (230 x 230mm). Weight 12 lb (6kg).

From the Manufacturer

Proxxon Chop and Miter Saw KGS 80 for clean and safe chop and miter cuts of non-ferrous metals, plastics and wood. Ideal for miter cuts. Instead of swiveling the saw head, the table with clampped down work piece is turned. The laterally moving saw head prevents colliding of the saw blade with the vise jaws. This allows for a minimal gap between the work piece vise and the actual cut, which is vibration-free and leaves no burr. Powerful, very quiet DC motor. Power transfer via quietly operating toothed drive belt. Comes with 3-1/8″ 24 tooth carbide saw blade.

UPC: 006274371600
