MSI MPG X870E Edge TI WiFi Motherboard, ATX – Supports AMD Ryzen 9000/8000 / 7000 Processors, AM5-80A SPS VRM, DDR5 Memory Boost 8400+MT/s (OC), PCIe 5.0 x16, M.2 Gen5, Wi-Fi 7, 5G LAN

Brand: MSI

Features:

n
• ULTRA POWER – SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE – The MPG X870E EDGE TI WIFI employs an 14 Duet Rail Power System (80A, SPS) VRM for the AMD X870E chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture

n

• FROZR GUARD – Premium cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink with Heat-pipe; Includes chipset heatsink, double-sided EZ M.2 Shield Frozr II, a Combo-fan (for pump & system) header (3A)

n

• DDR5 MEMORY, PCIe 5.0 x16 SLOTS – 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 8400+ MT/s); PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor II support cutting-edge graphics cards

n

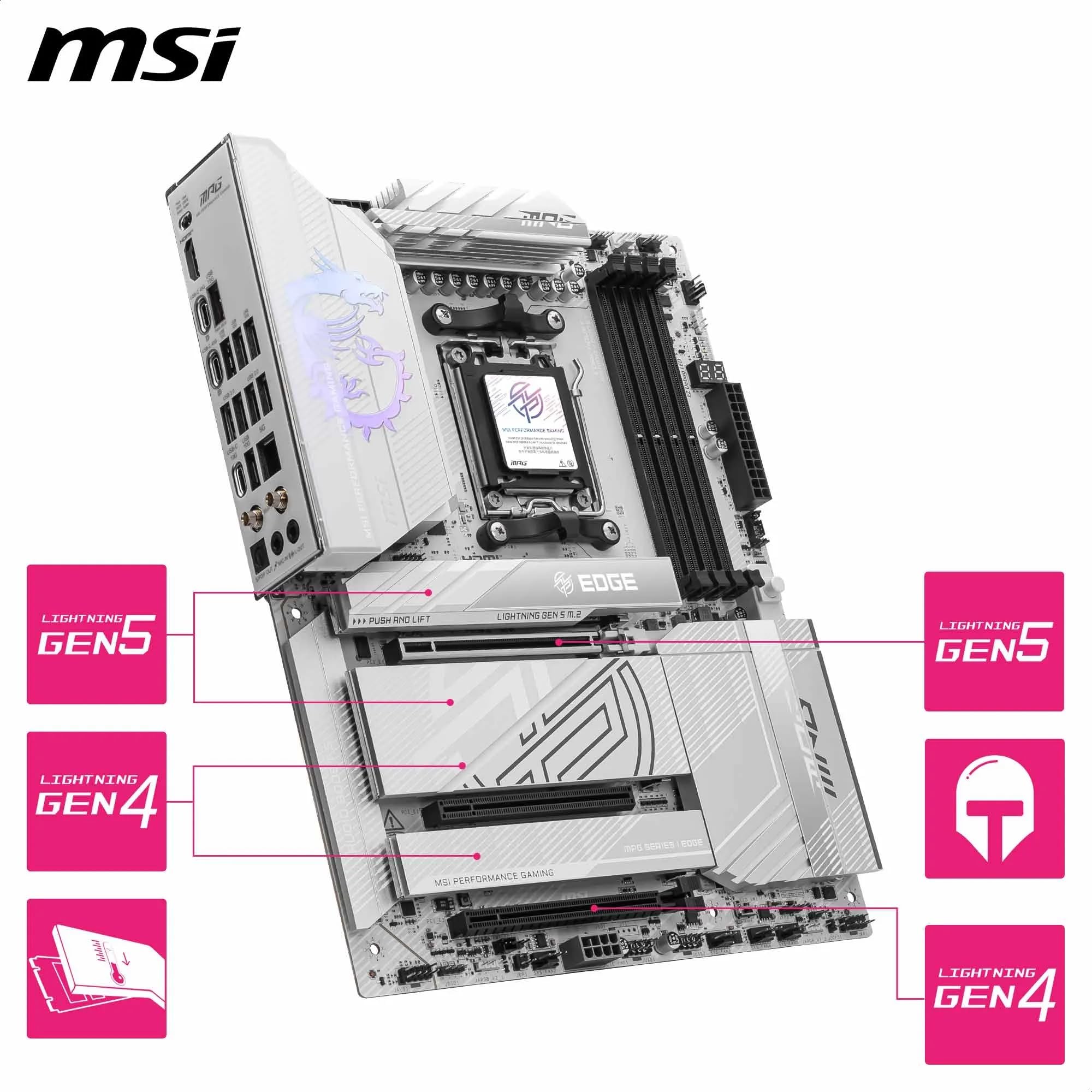

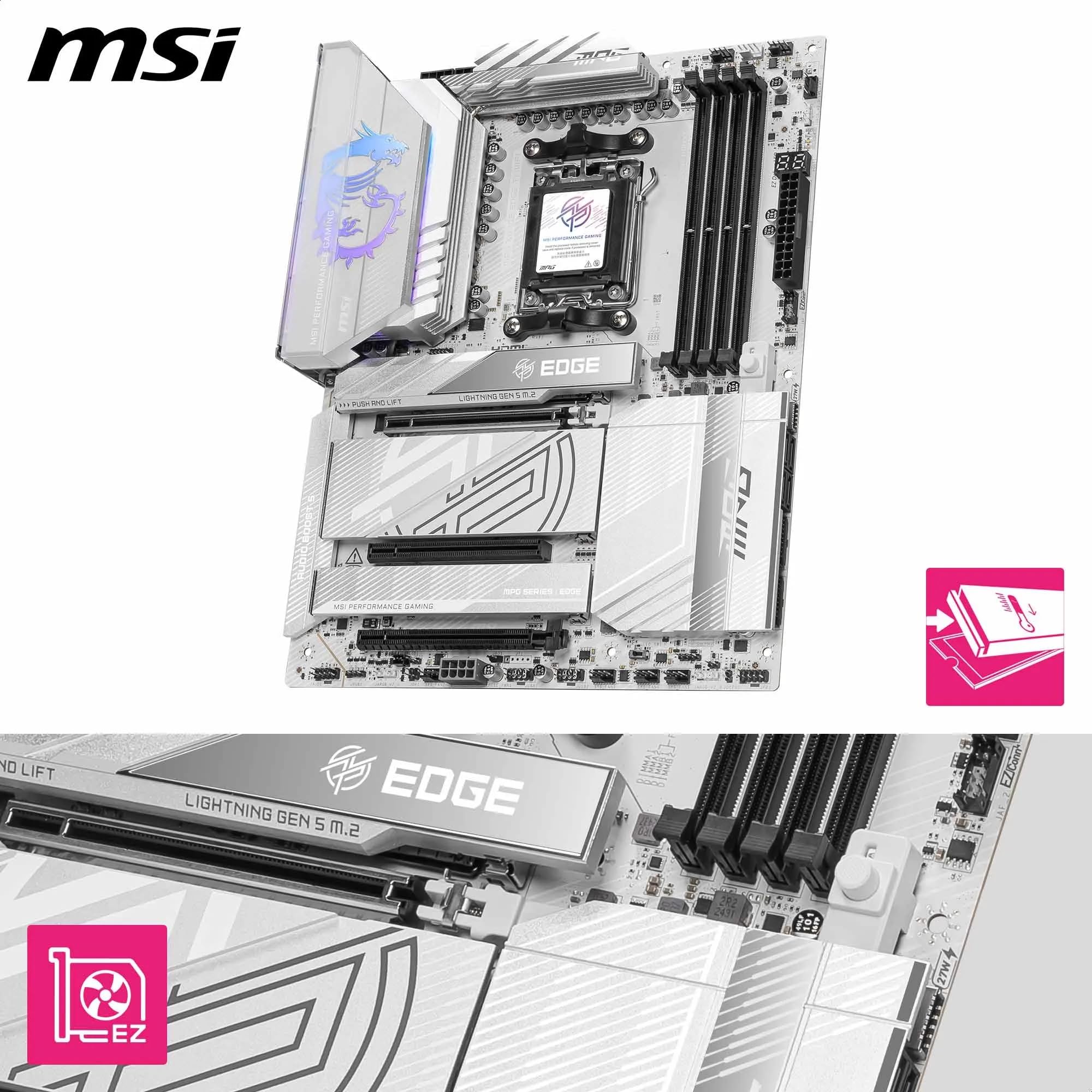

• QUADRUPLE M.2 CONNECTORS – Storage options include 2 x M.2 Gen5 x4 128Gbps slots and 2 x M.2 Gen4 x4 64Gbps slots with Shield Frozr to prevent thermal throttling; Features EZ M.2 Shield Frozr II with EZ M.2 Clip II for EZ DIY experience

n

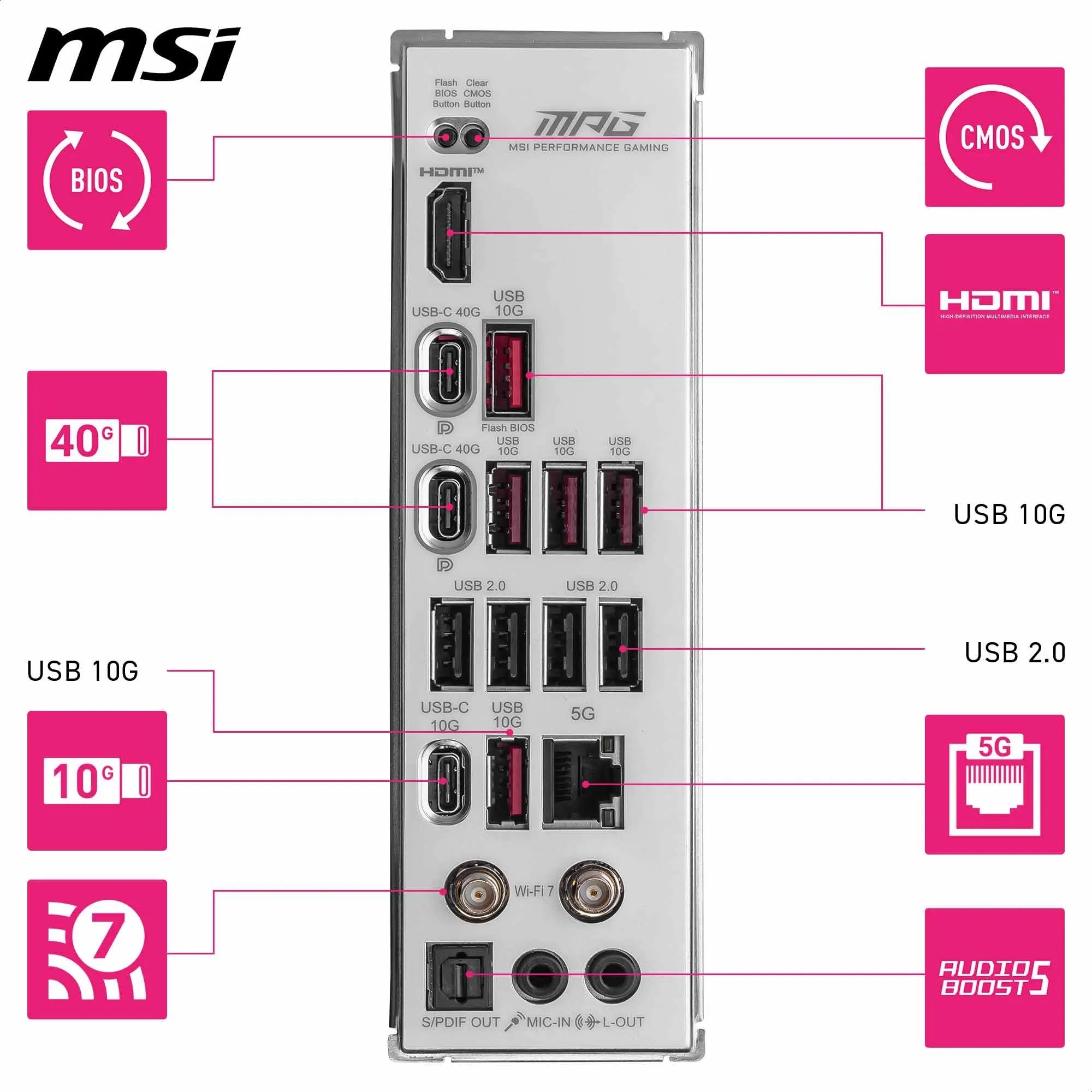

• ULTRA CONNECT – Network hardware includes a full-speed Wi-Fi 7 module with Bluetooth 5.4 & 5Gbps LAN; Rear ports include USB4 Type-C 40Gbps with display output and 7.1 USB High Performance Audio with Audio Boost 5 (supports S/PDIF output)

n

Package Dimensions: 70x339x2425

Release Date: 15-01-2025

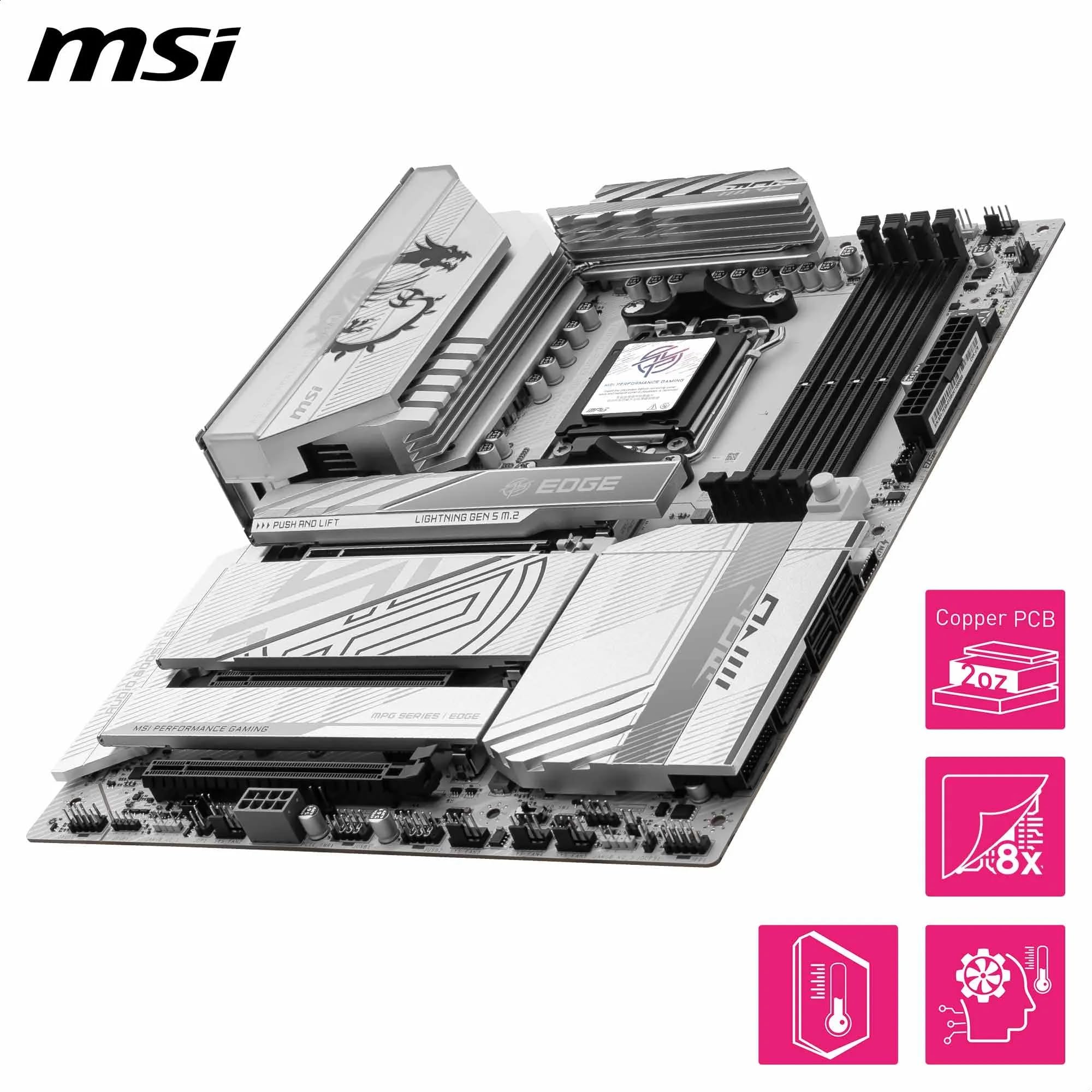

Details: MPG X870E EDGE TI WIFI: Game In Style Designed for gaming on the AMD X870E chipset (Ryzen 9000 / 8000 / 7000 supported, AM5), the MSI MPG X870E EDGE TI WIFI motherboard includes premium GPU support with PCIe 5.0 x16 slot, improved DDR5 memory support 8400+MT/s (OC), and extensive M.2 Gen5 storage options (with Shield Frozr). To power the latest Ryzen 9000 processors, the MPG X870E EDGE TI WIFI is equipped with an 14 Duet Rail Power System (80A, SPS) VRM for the CPU and dual 8-pin CPU power connectors, augmented with multiple passive cooling features. MSI X870E gaming motherboards feature durable server-grade PCBs with 2oz of thickened copper and PCIe Steel Armor II to support the primary graphics card slot. Connectivity includes full-speed Wi-Fi 7 and Bluetooth 5.4 technology, Realtek 5G LAN, USB4 Type-C (40Gbps) with 4K@60Hz display support, and 7.1 USB High Performance Audio. For gamers looking for an AMD Ryzen 9000 / 8000 / 7000 platform that unites PCIe 5.0 x16 graphics card architecture, improved DDR5 support, and M.2 Gen5 storage options into one elegant design, the MSI MPG X870E EDGE TI WIFI gaming motherboard is the perfect choice.

UPC: 824142395363
