Morningstar SunSaver 20A PWM Solar Charge Controller (SS-20L-12V) – Solar Panel Regulator for 12V Batteries, Four Stage Battery Charging, LVD, HazLoc Rated, Low Noise, 5 Year WTY – Designed in the USA

Brand: Morningstar Corporation

Color: white/black

Features:

n
• 20A PWM CONTROLLER: Morningstar SunSaver Pulse Width Modulation (PWM) 20A solar charge controller with load contol delivers reliable charging for smaller solar systems. It regulates the power from the solar array to the battery bank. Benefit from lower power consumption and consistent energy harvesting efficiency.

n

• LONGER BATTERY LIFE: This controller extends battery life with series PWM four-stage charging and temperature compensation. It supports selectable options for sealed or flooded batteries, includes a 3-state battery LED indicator, dead battery recovery, and load control.

n

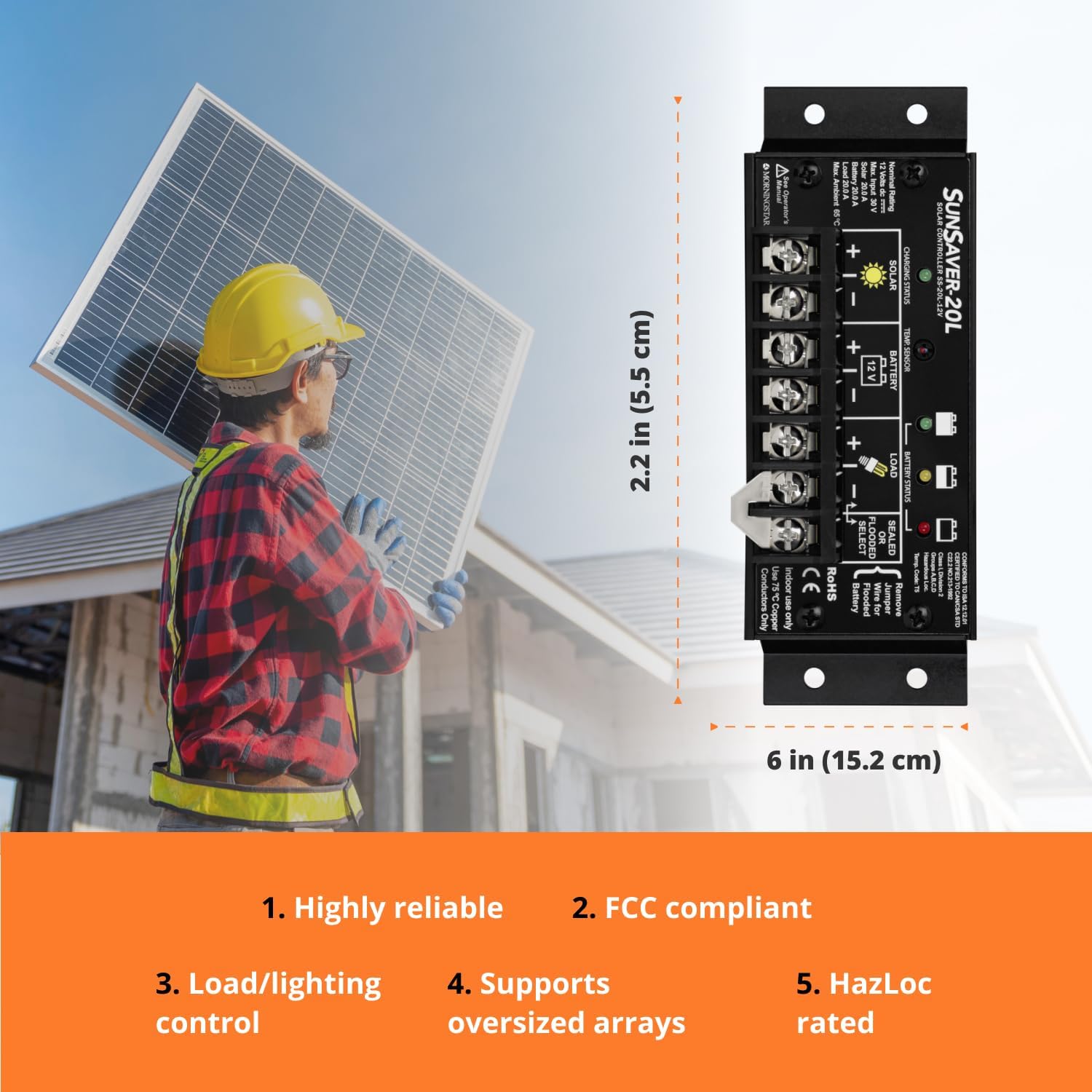

• EASY INSTALLATION: Enjoy hassle-free setup with factory pre-sets that remove the need for manual installation adjustments. Electronic protections safeguard against wiring mistakes, ensuring safe and straightforward installation. Each SunSaver comes with a wire terminal cover for added convenience.

n

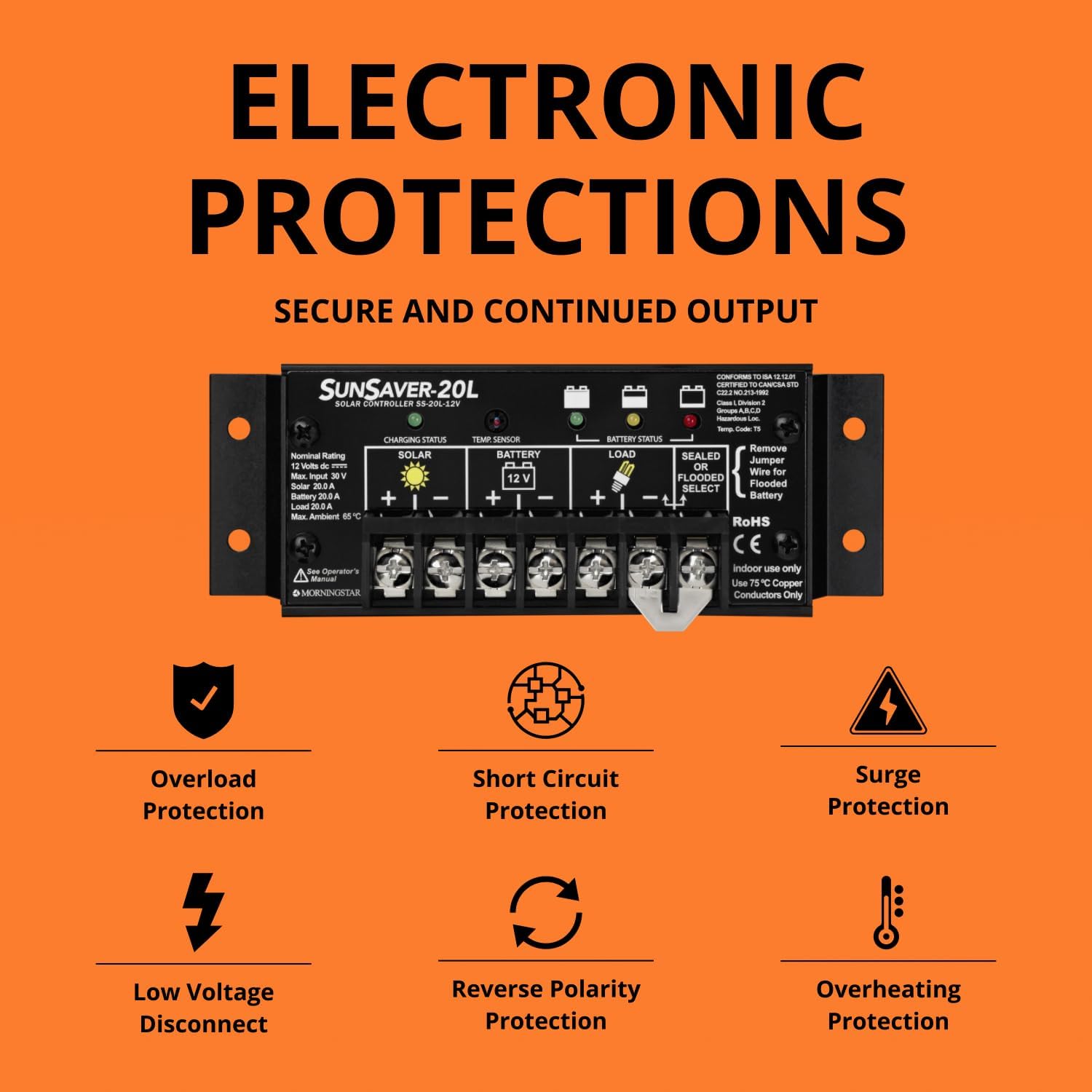

• ELECTRONIC PROTECTIONS: These systems feature built-in electronic protection against surges, short-circuits, overloads, and reverse polarity. They include high voltage and high temperature disconnect to safeguard against damage to electrical components. Advanced self-diagnostics alert users to installation or operational errors, while automatic recovery occurs when short circuits are cleared.

n

• TRUSTED RELIABILITY: Morningstar Corporation is a US company established in 1993 and is a global leader in manufacturing PWM and MPPT solar charge controllers, inverters, and accessories. Renowned for the industry’s lowest hardware failure rate, Morningstar provides dependable, innovative technology for advanced solar applications. Morningstar products include U.S. based Tech Support and are the top choice for mission-critical users.

n

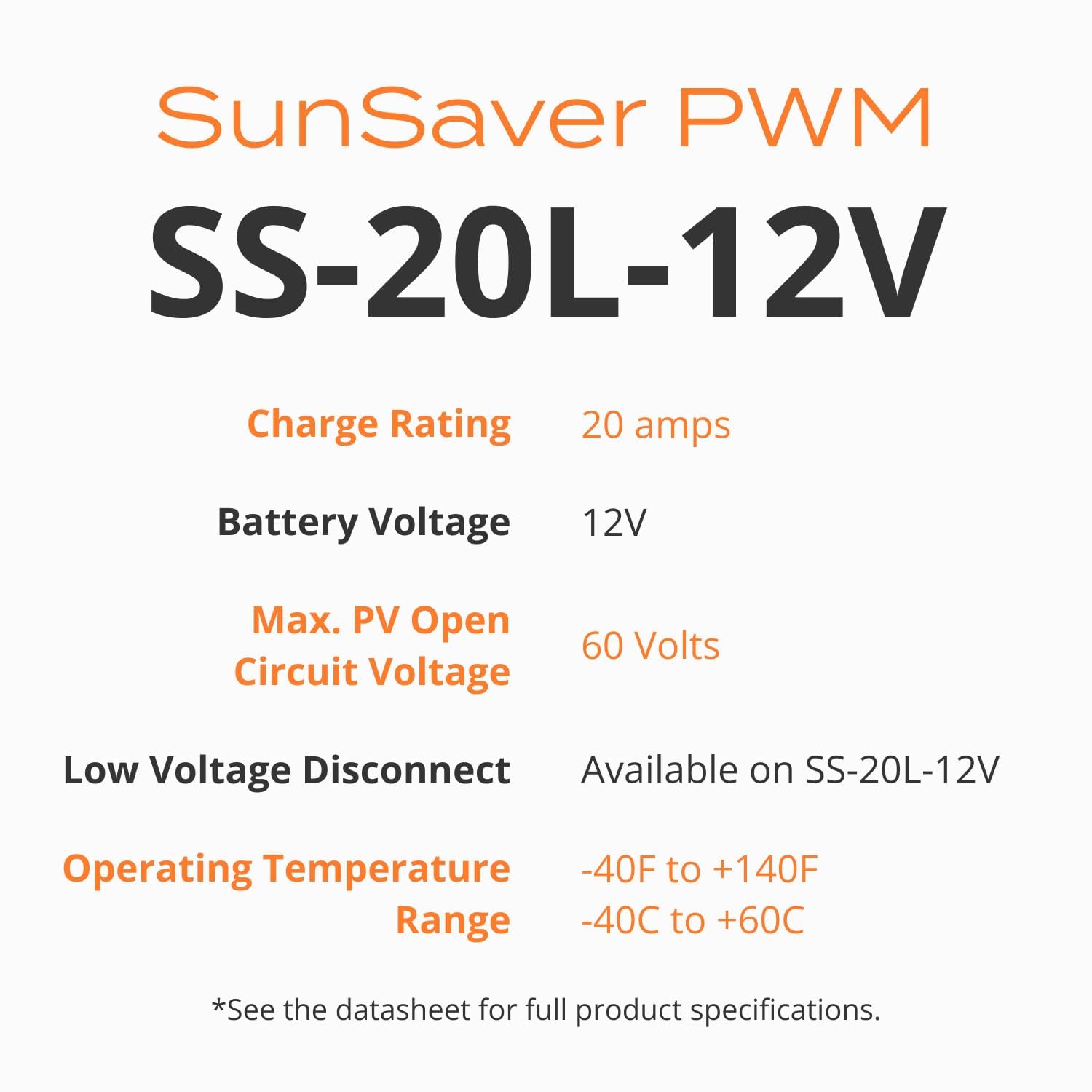

model number: SS-20L-12

Part Number: SS-20L-12V

Details: SunSaver-20 amp with LVD (12V)

EAN: 0026190333391

Package Dimensions: 7.2 x 3.0 x 2.5 inches
