JRready ST6306-1 Deutsch Connector Master Kit with Deutsch Turret Style Crimp Tool JRD-HDT-48, DT DTM DTP DTHD Connectors with Size 12 16 20 Solid Contacts Wire Gauge 12-22AWG

Brand: JRready

Color: Red

Features:

n

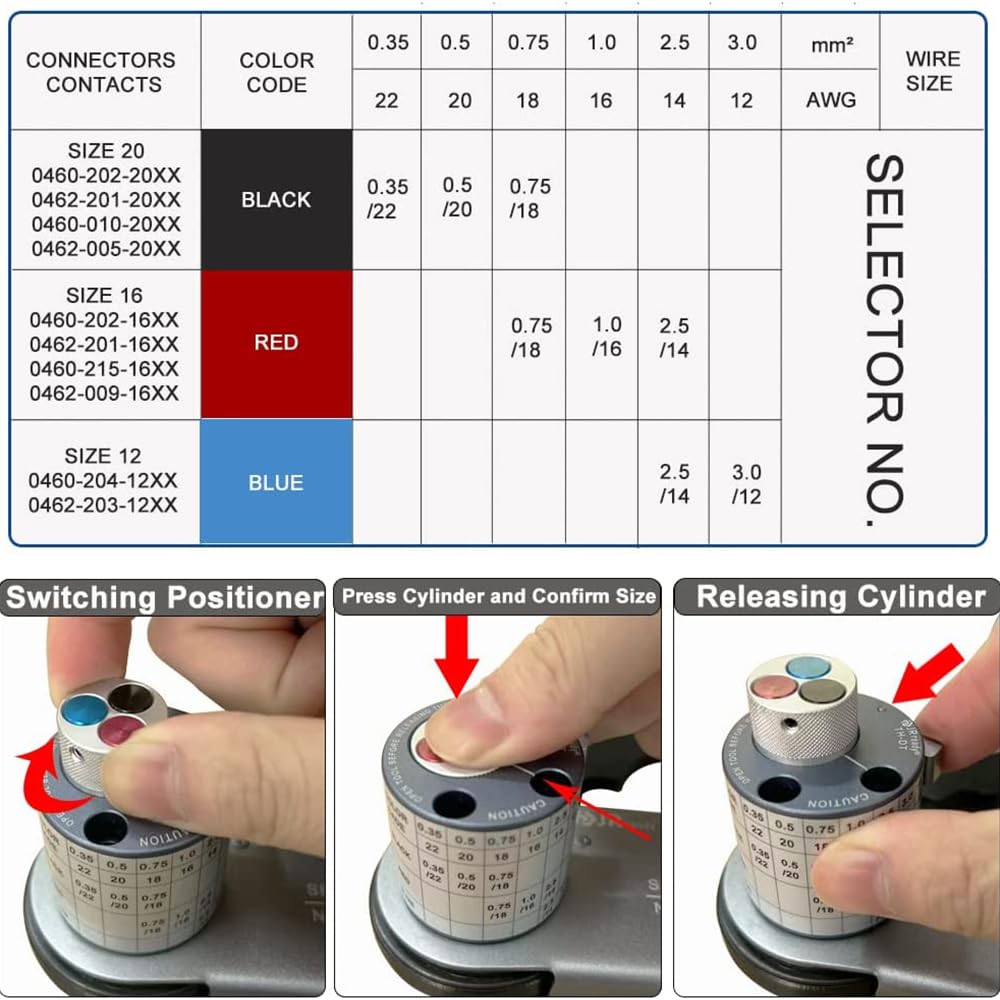

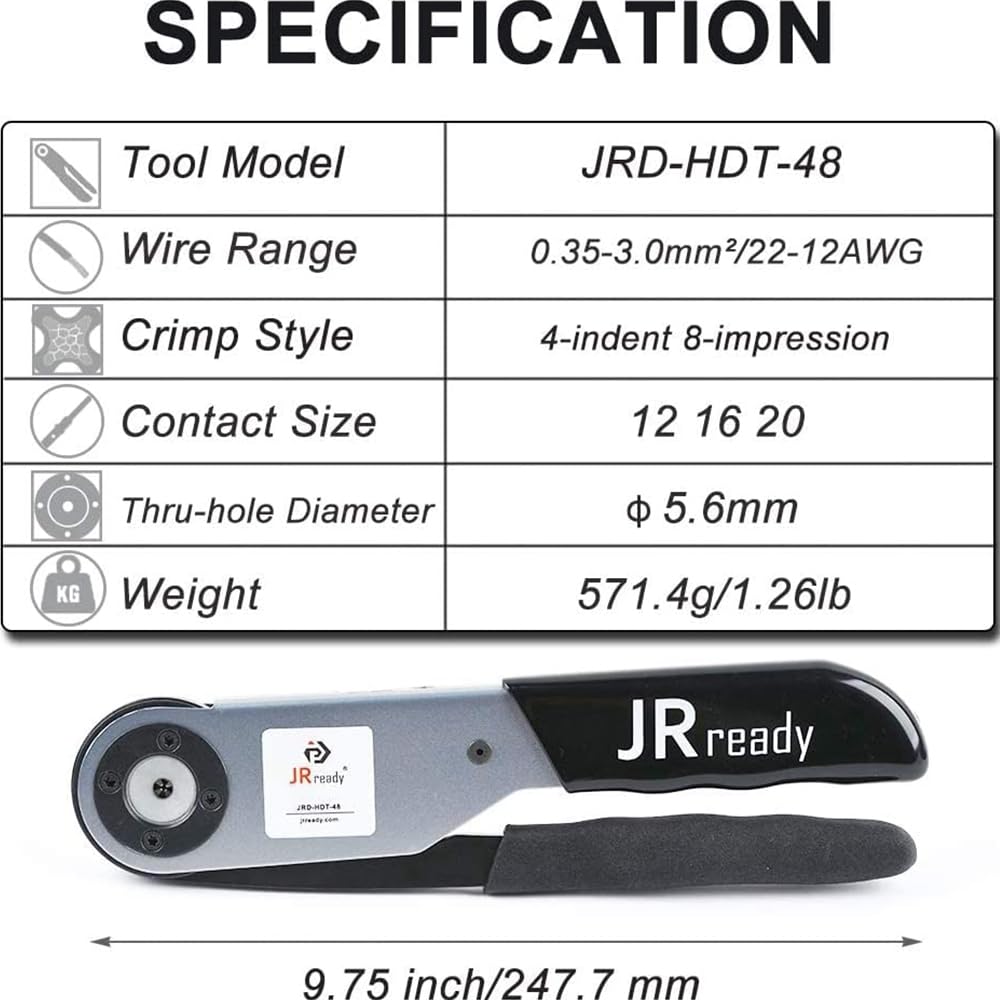

• Turret Positioner Crimper:Wire crimp range is 12-22AWG, designed for crimping deutsch size 12, 16, 20 solid contacts. The positioner contains three different specifications of the positioning core, each core corresponds to the different positioning turret colors (red-size 16, black-size 20, blue-size 12), and rotates to the right color according to the different terminal specifications.

n

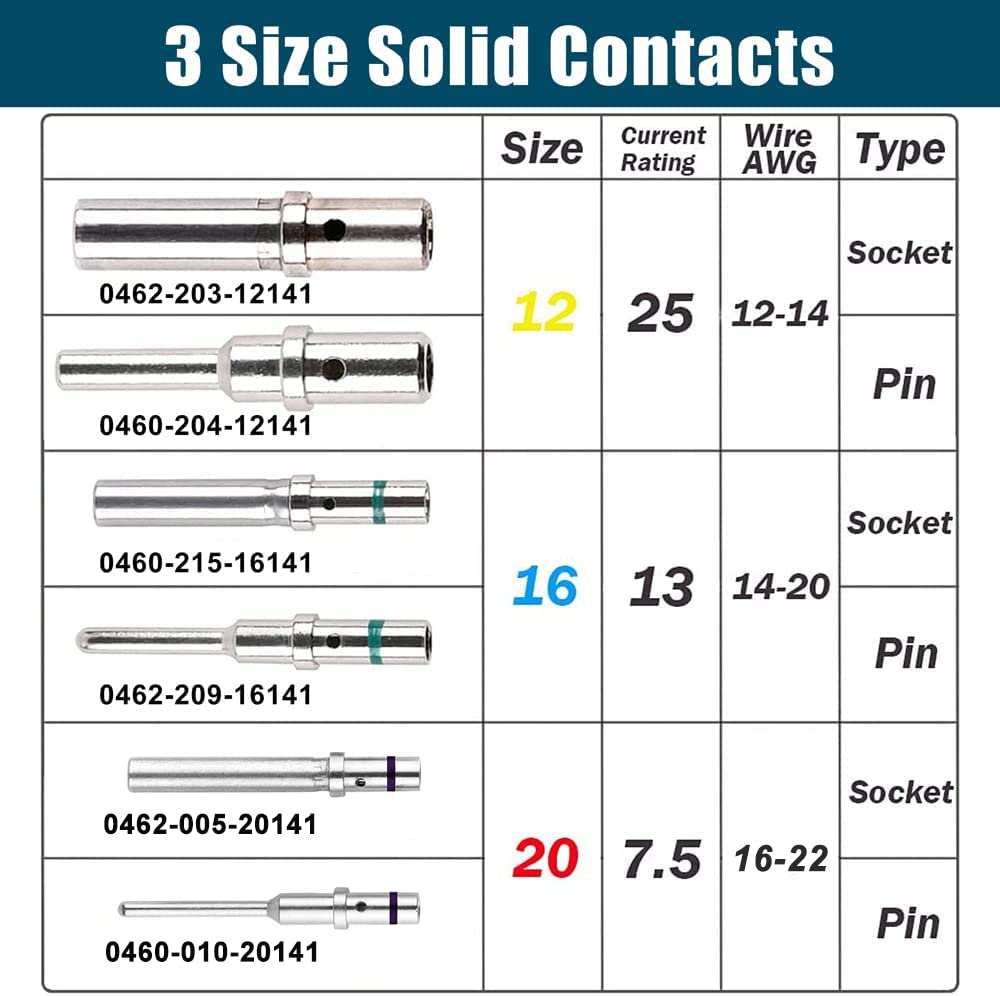

• Size 12 16 20 Solid Contacts: Material tin bronze, better conductivity, and stability than brass, nickel plating also makes terminals resistant to corrosion and wear, and easy to crimp with wire and install into the connector.

n

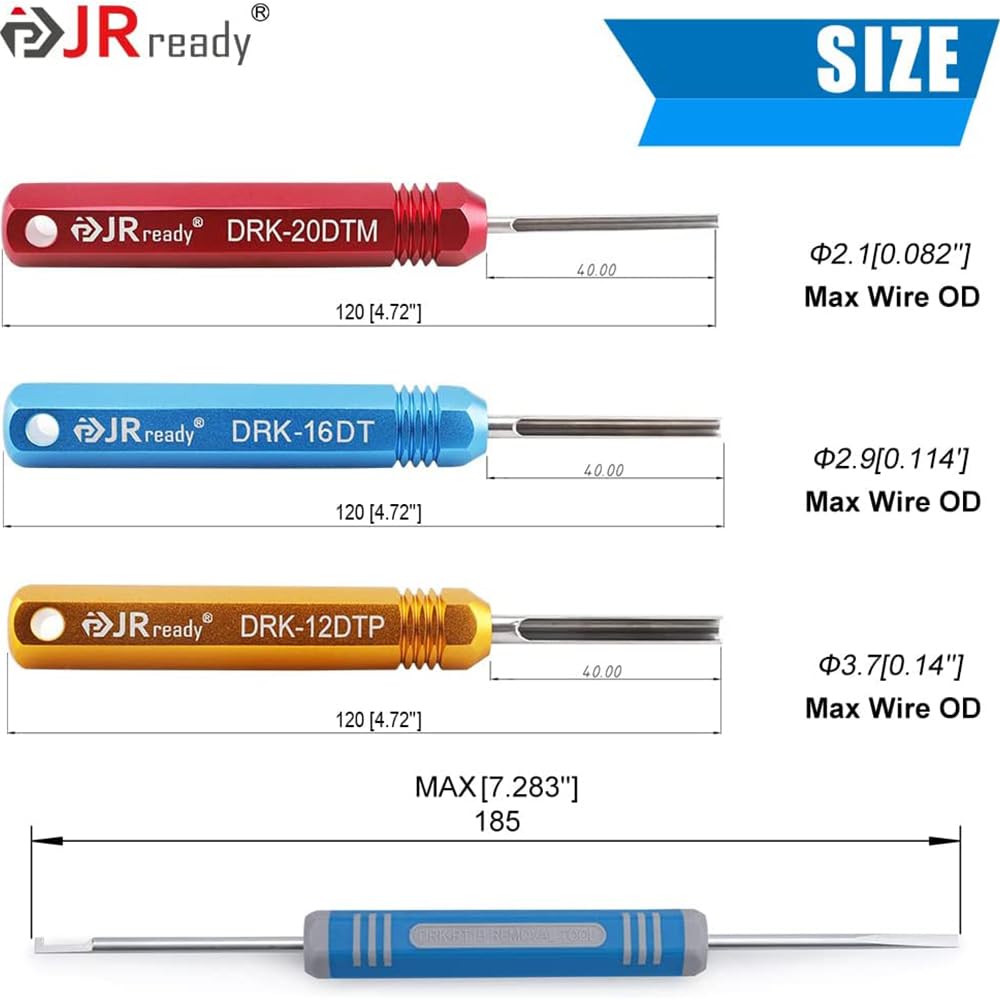

• Removal Tool: Stainless steel shaft has a long service life, removing contacts without damage to the wire; longer anodized aluminum handle increases the comfort of grip and control

n

• DT DTM DTP Connectors: Both DT and DTM connectors have 2 3 4 6 8 and 12 cavity types, DTP connectors have 2 4 cavity types, all DT series connectors are made of PA66 nylon, durable and waterproof, convenient to connect and disconnect, suitable for long time use.

n

• DTHD Connectors: 1-pin connectors, made of PEI Polyetherimide material, feature an integrated latch for mating, have rubber sealing rings for waterproofing, and can be mounted or used in-line.

n

model number: ST6306-1

Part Number: ST6306-1

Package Dimensions: 15.6 x 13.7 x 3.3 inches
