Jonard Tools MS-836 Mid Span Slit & Ring Tool for RocketRibbon® Cable (11.6 mm-22.6 mm)

Brand: Jonard Tools

Features:

n
• EASY OPERATION: Simply open the tool, place the fiber in the proper groove, Lock the tool, and either pull the tool to slit, or rotate the tool around the fiber to ring

n

• PRECISION GROOVES: Consists of 4 precision slitting grooves and 4 precision ring grooves ranging in size from 11.6 mm to 22.6 mm, perfect for RocketRibbon or other similar cable

n

• LIGHTWEIGHT & PORTABLE: Compact design weighing less than 0.69 lb (311 g) with included tethering hole makes it perfect to use in tight spaces or on the go

n

• ULTRA-SHARP BLADES: Can be used up to 5,000 in each groove

n

• REPLACEMENT BLADES: Replacement blades are available, Part #: MS-526RB

n

Binding: Tools & Home Improvement

model number: MS-836

Part Number: MS-836

Details: The PATENTED MS-836 Mid Span Slit & Ring Tool is designed to provide easy access to optical ribbon fibers in Corning’s RocketRibbon® cable. Building on the popularity of the Jonard Tools MS-6 and MS-26 Fiber Optic Mid Span Slitting Tools, we have incorporated a ring feature in the tool to make it even more versatile.
n

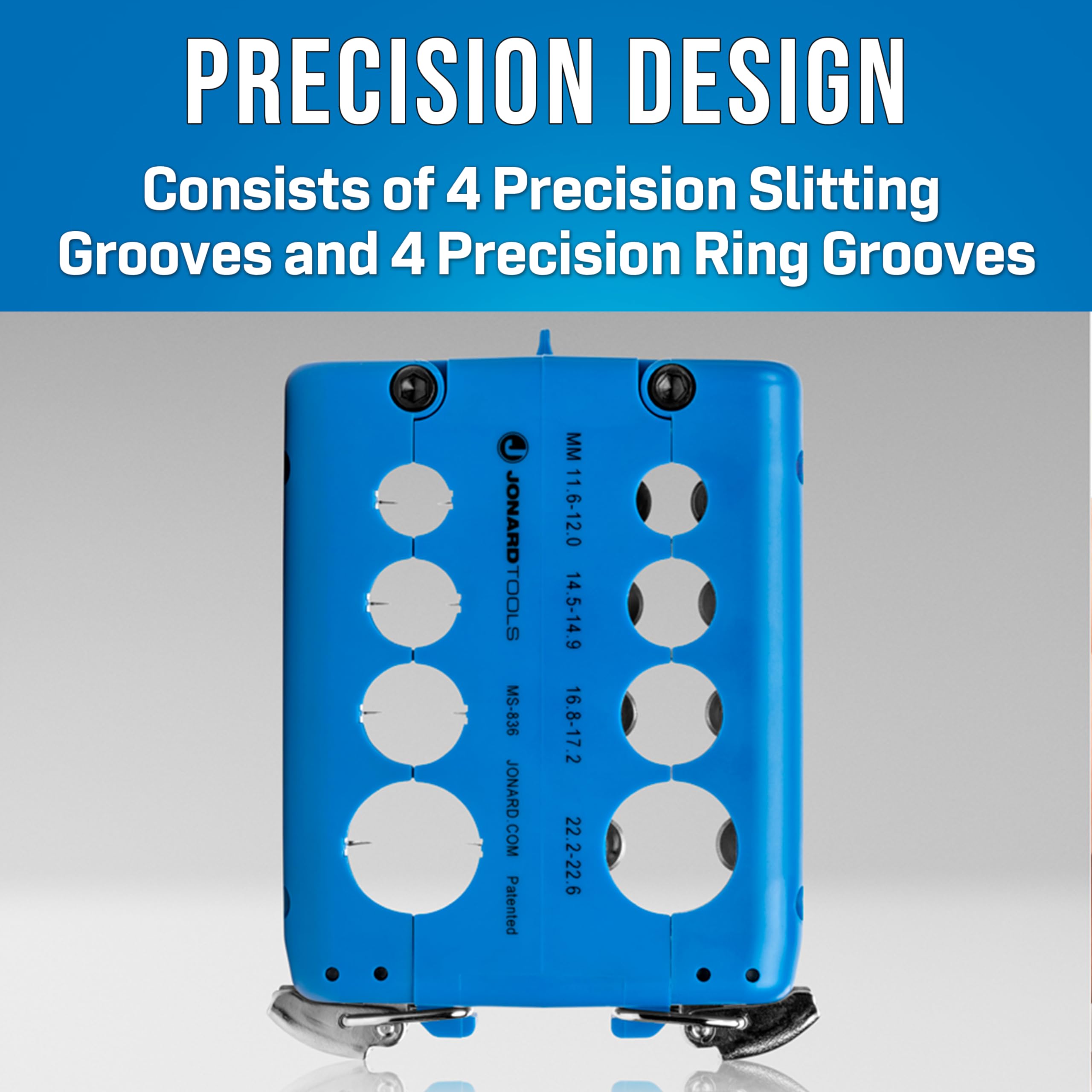

nConsists of 4 precision slitting grooves and 4 precision ring grooves ranging in size from 11.6 mm to 22.6 mm

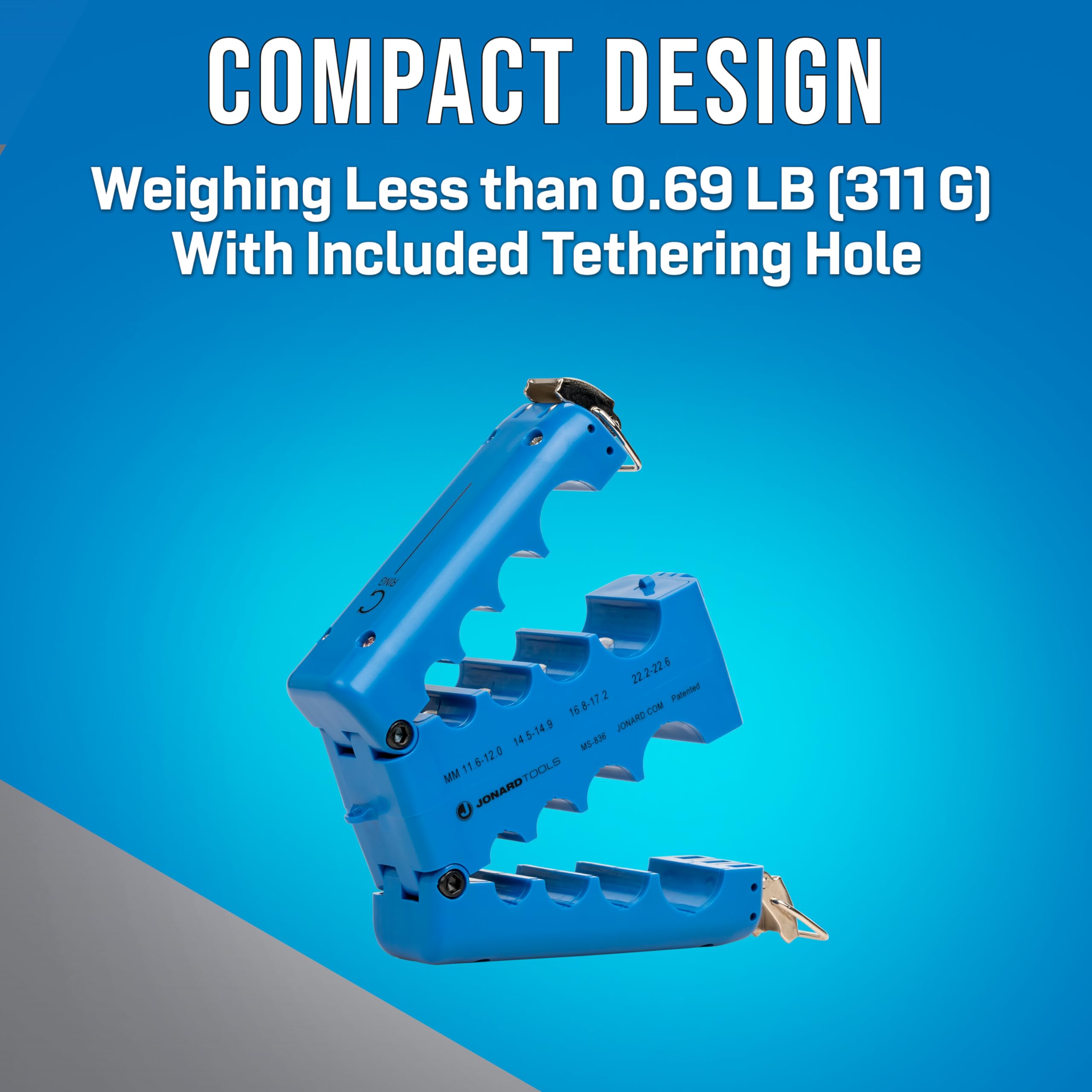

nCompact design weighing less than 0.69 lb (311 g) with included tethering hole makes it perfect to use in tight spaces or on the go

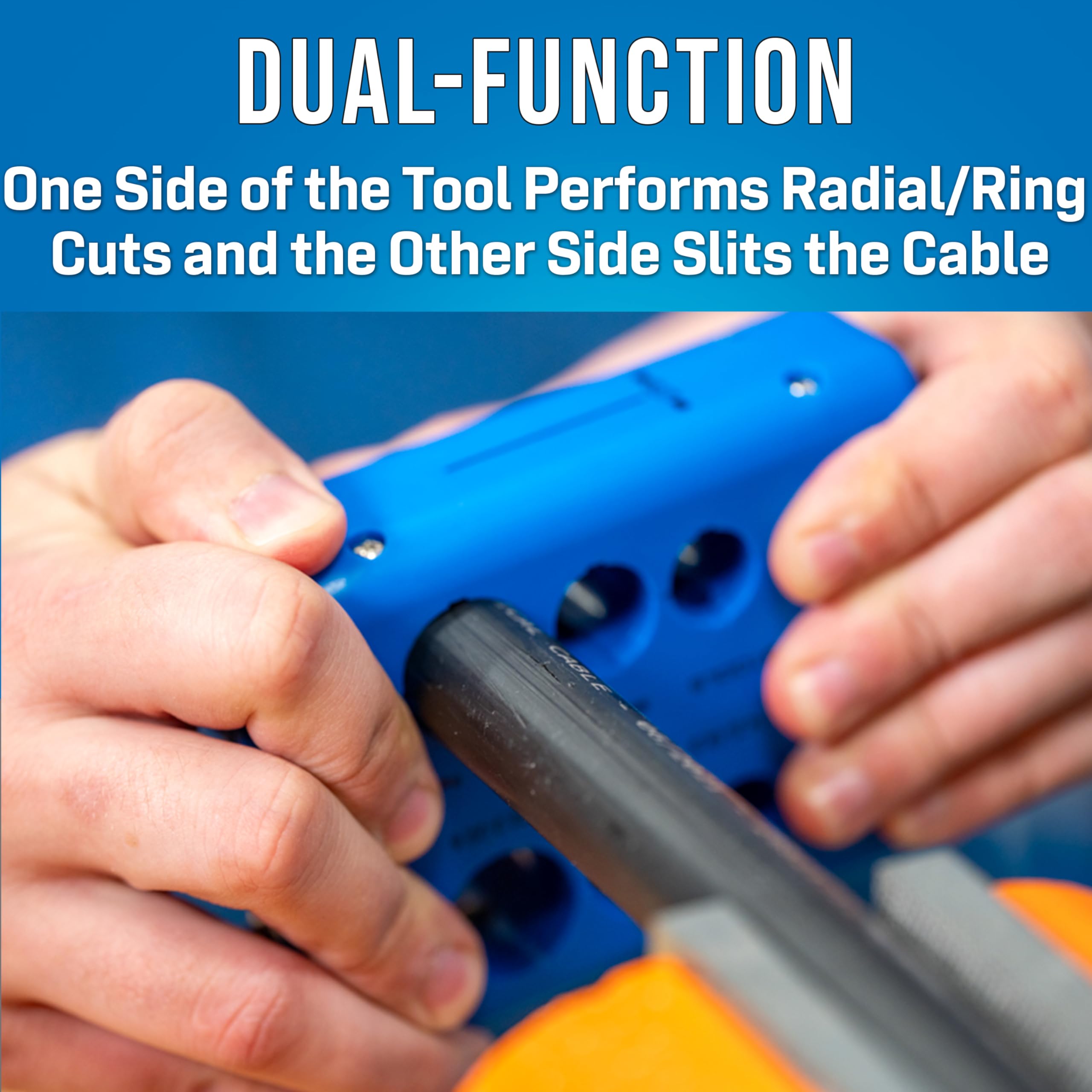

nOne side of the tool performs radial/ring cuts and the other side slits the cable (longitudinal cut)

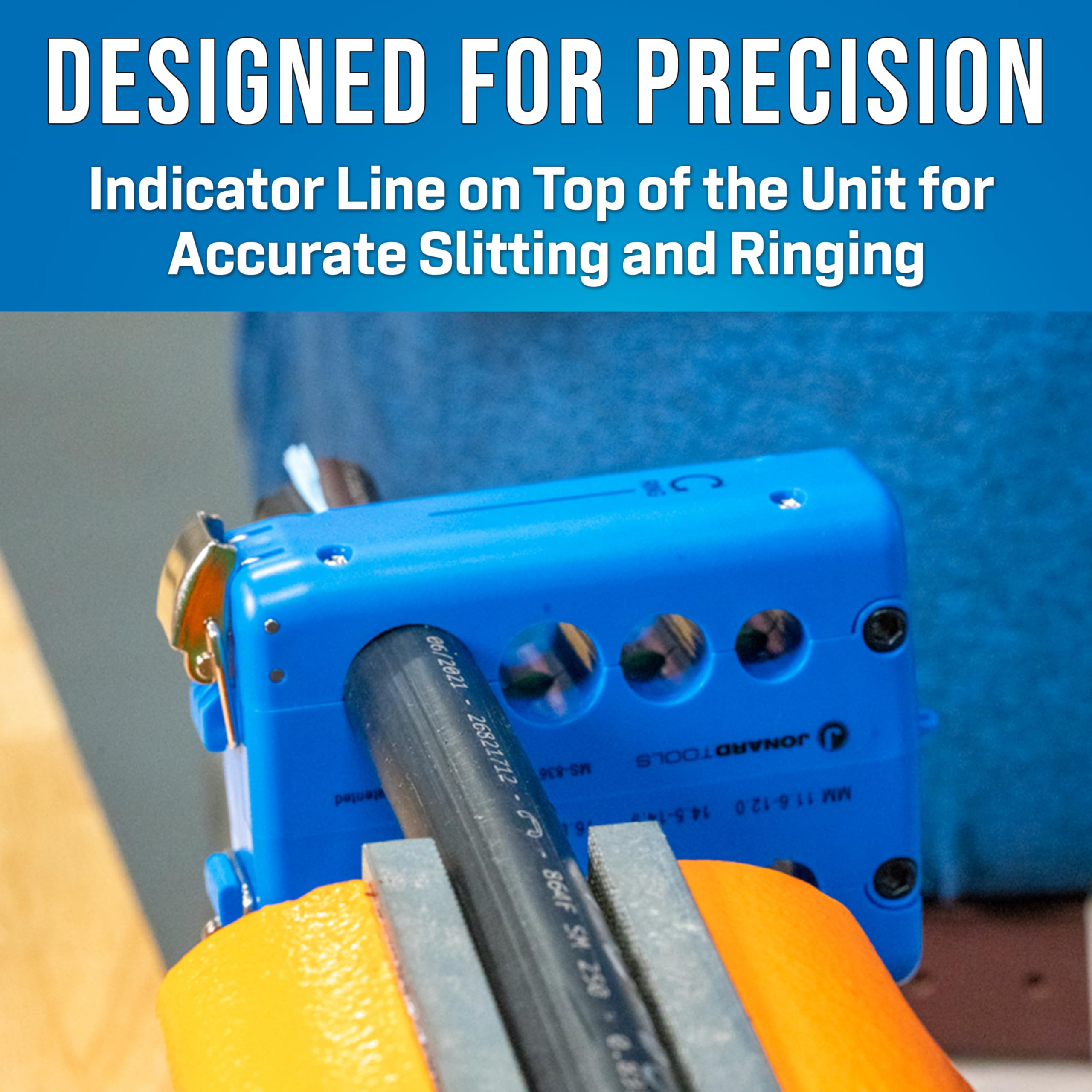

nIndicator line on top of the unit indicates the position of the blade for accurate slitting and ringing
nThis tool was specially designed for use on Corning RocketRibbon® cables
n
nReplacement blade set available, part number: MS-836RB
n
nBlades last for 5,000 slits or rings
n
nGroove Sizes: 11.6 mm-12.0 mm | 14.5 mm-14.9 mm | 16.8 mm-17.2 mm | 22.2 mm-22.6 mm

EAN: 0810053352229

Package Dimensions: 8.5 x 4.7 x 1.7 inches
