Dayton 1TDT2 Blower, 549 CFM, 115V, 2.05 Amp, 1640 RPM

Brand: Dayton

Color: Gray

Features:

n
• Rectangular oem blower with flange

n

• Voltage 115, 1640 rpm, wheel dia. 6-1/4 inch

n

• Direct-drive blower with forward-curve wheels are oem replacements

n

• General heating, cooling, ventilating, or component cooling applications

n

• Not for use with speed controllers

n

Release Date: 21-03-2018

model number: 1TDT2

Part Number: 1TDT2

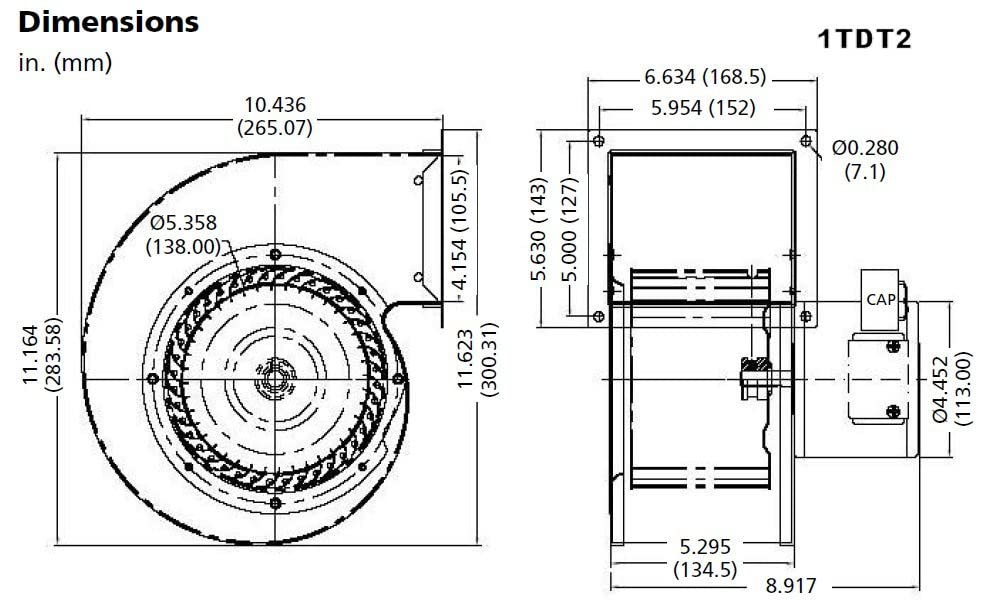

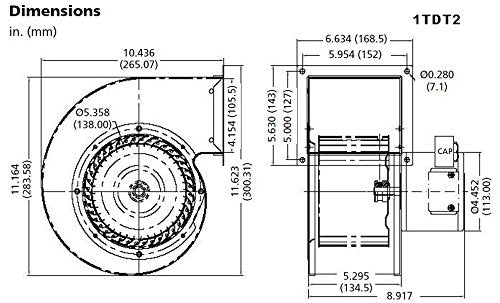

Details: OEM Blower, Outlet Shape Rectangular, With/Without Flange With Flange, Wheel Dia. 6-1/4″, Wheel Width 1-7/8″, CFM @ 0.000-In. SP 549, CFM @ 0.100-In. SP 538, CFM @ 0.200-In. SP 510, CFM @ 0.300-In. SP 500, CFM @ 0.400-In. SP 480, CFM @ 0.500-In. SP 450, CFM @ 0.600-In. SP 435, CFM @ 0.700-In. SP 390, CFM @ 0.800-In. SP 360, Voltage 115, Hz 50/60, Phase 1, Full Load Amps 2.05, RPM 1640, Bearing Type Ball, Motor Type Permanent Split Capacitor, Motor Enclosure Open, Motor Insulation Class B, Thermal Protection Auto, Lead Length 13″, Conduit Box Yes, Max. Ambient Temp. 104 Degrees F, Max. Inlet Temp. 104 Degrees F, Inlet Dia. 5-5/16″, Outlet Height 4-1/4″, Outlet Width 5-1/4″, Overall Height 11-1/8″, Overall Width 9-3/16″, Overall Depth 10-7/16″, Wheel Type Forward Curve, Drive Type Direct, Mounting Position All Position, Housing Finish Enamel, Housing Material Rolled Steel, Housing Color Gray, Agency Compliance UL Recognized US and Canada (E47479), CE, Replaces 4C445 and 4YJ32, Includes D.

EAN: 0663001413257

Package Dimensions: 13.4 x 13.4 x 11.9 inches
